APD-16-0R53G-SMA Preliminary
16 Way Power Divider

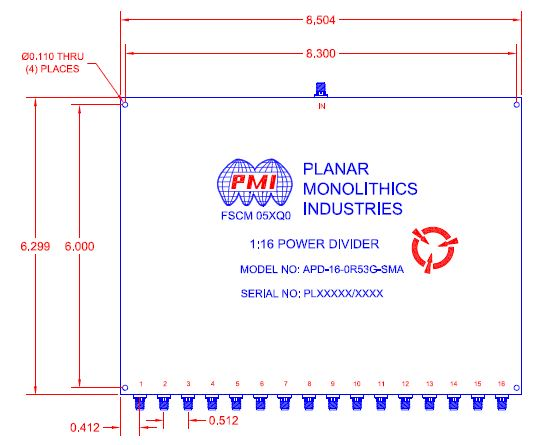

Quantic PMI Model APD-16-0R53G-SMA is a 16 Way power divider that operates over the frequency range of 0.5 to 3 GHz that has a minimum isolation of 18 dB and a maximum insertion loss of 2.6 dB (above 124 dB split). Housing measures 8,504" x 6.299" x 0.6" and is outfitted with SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Type: | 16 Way |
| Frequency Range (GHz): | 0.5 to 3 |
| Frequency Min (GHz): | 0.5 |
| Frequency Max (GHz): | 3 |
| Isolation (dB): | 18 dB Min |
| Insertion Loss (dB): | 2.6 dB Max (Above 12.04 dB Split) |
| Amplitude Balance: | ±0.8 dB Max |
| Phase Balance: | ±5° Max |
| Power Handling: | 30 W Max (Forward) 1 W Max (Reverse) |
| Impedance: | 50 Ohm |
| VSWR Input: | 1.6:1 Max |
| VSWR Output: | 1.3:1 Max |
| Connectors: | SMA Female |
| Finish: | Painted Blue |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -55 °C to +85 °C |
| Temperature (Non-Operating): | -65 °C to +125 °C |
| Humidity: | UP to 95%, NON-CONDENSING (OPERATING) |
| Shock: | MIL-STD-202, METHOD 213B COND. B |
| Vibration: | MIL-STD-202, METHOD 204D COND. B |
| Altitude: | MIL-STD-202, METHOD 105C COND. B |
| Temperature Cycle: | MIL-STD-202, METHOD 107D COND. A |
