| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| Type: | 16 Way |
|---|
| Frequency Range (GHz): | 1 to 6 |
|---|
| Frequency Min (GHz): | 1 |
|---|
| Frequency Max (GHz): | 6 |
|---|
| Isolation (dB): | 18 dB Min |
|---|
| Insertion Loss (dB): | 3 dB Max (Above 12.04 dB Split) |
|---|
| VSWR (In/Out): | 1.7:1 Max / 1.4:1 Max |
|---|
| Amplitude Balance: | ±1 dB Max |
|---|
| Phase Balance: | ±8° Max |
|---|
| Power Handling: | 20 W Max (Forward)
1 W Max (Reverse) |
|---|
| Impedance: | 50 Ohm |
|---|
| Amplitude Tracking: | ±1 dB Max |
|---|
| Phase Tracking: | ±8° Max |
|---|
| Connectors: | SMA Female |
|---|

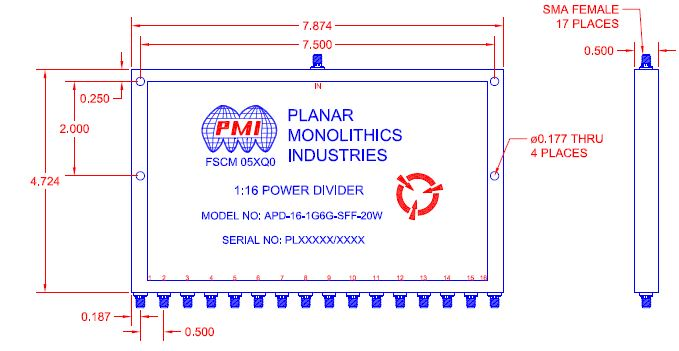

| Size: | 7.874" x 4.724" x 0.5" |
|---|
| Finish: | Painted Blue |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Temperature (Operating): | -55 °C to +85 °C |
|---|
| Temperature (Non-Operating): | -65 °C to +125 °C |
|---|
| Humidity: | Up to 95% (Non-Condensing) (Operating) |
|---|
| Shock: | MIL-STD-202, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202, Method 107D Cond. A |
|---|
