APD-16-2D9G3D1G-SFF Preliminary

16 Way Power Divider

APD-16-2D9G3D1G-SFF
Product Feature

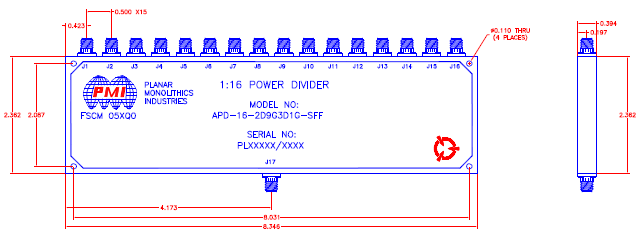

Quantic PMI Model APD-16-2D9G3D1G-SFF is a 16 Way, In-Phase Power Divider operating from 2.9 to 3.1 GHz that offers a low insertion loss of 1.5 dB with over 18 dB of isolation. The phase balance is 4° maximum, and the amplitude balance is 0.2 dB maximum at 3 GHz. Housing size is 8.346" x 2.362" x 0.394" and is outfitted with SMA female connectors.

Product Specifications

General Parameters:
Status: Preliminary
Type: 16 Way
Frequency Range (GHz): 2.9 to 3.1
Frequency Min (GHz): 2.9
Frequency Max (GHz): 3.1
Isolation (dB): 18 dB Max
Insertion Loss (dB): 1.5 dB Max
VSWR (In/Out): 1.4:1 Max
Amplitude Balance: 0.2 dB Max (@ 3 GHz)
Phase Balance: 4.0º Max (@ 3 GHz)
Power Handling: 20 W Max (Forward)
1 W Max (Reverse)
Impedance: 50 Ohm
Connectors: SMA Female
Size: 8.346" x 2.362" x 0.394"
Finish: Painted Blue
Export Classification (ECCN): EAR99
Environmental Ratings:
Temperature (Operating): -55 ºC to +85 ºC
Temperature (Non-Operating): -65 ºC to +125 ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
