| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| Type: | 16 Way |
|---|
| Frequency Range (GHz): | 0.5 to 18 |
|---|
| Frequency Min (GHz): | 0.5 |
|---|
| Frequency Max (GHz): | 18 |
|---|
| Isolation (dB): | 12 dB Min |
|---|
| Isolation (dB) - Measured: | 12 dB Min (0.5 to 0.6 GHz),
14 dB Min @ 0.6 to 18 GHz |
|---|
| Insertion Loss (dB): | 12 dB Max |
|---|
| Insertion Loss (dB) - Measured: | 12 dB Max (Above 12.04 dB Split) |
|---|
| VSWR (In/Out): | 2.0:1 Max / 1.8:1 Max |
|---|
| Amplitude Balance: | ±1.5 dB Max |
|---|
| Phase Balance: | ±9° Max |
|---|
| Power Handling: | 30 W Max (Forward)
1 W Max (Reverse) |
|---|
| Impedance: | 50 Ohm |
|---|
| Solder: | Lead Free, ROHS Compliant |
|---|
| Connectors: | SMA Female |
|---|

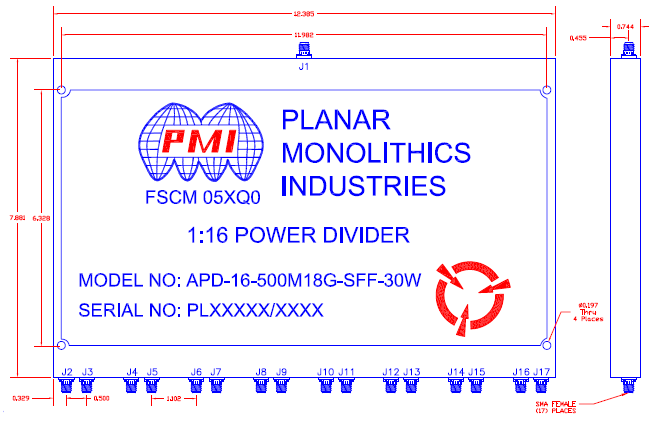

| Size: | 12.385" x 7.881" x 0.744" |
|---|
| Finish: | Painted Blue |
|---|
| Weight: | 3500 g |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Temperature (Operating): | -55 ºC to +85 ºC |
|---|
| Temperature (Non-Operating): | -65 °C to +125 °C |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
|---|
