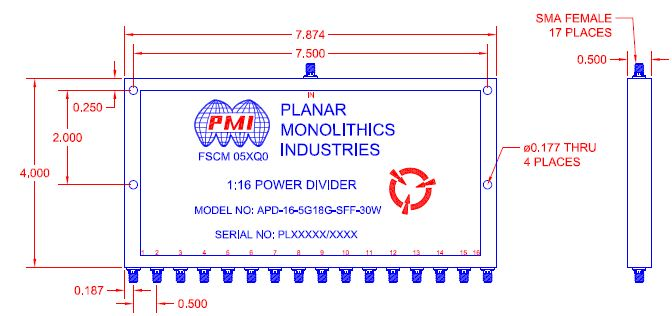

APD-16-5G18G-SFF-30W

PMI Model No. APD-16-5G18G-SFF-30W is a 16-Way Power Divider that operates over the frequency range of 5.0 to 18.0 GHz. It has a minimum isolation of 16 dB and a maximum insertion loss of 3.5 dB (Above 12.04 dB Split). This model is outfitted with SMA female connectors.

Product Specifications

General Parameters:
Status: Preliminary
Type: 16-Way
Frequency Min: 5.0 GHz
Frequency Max: 18.0 GHz
Isolation: 16 dB min.
Insertion Loss: 3.5 dB max. (Above 12.04 dB Split)
VSWR (In/Out): 1.80:1 max./1.60:1 max.
Amplitude Balance: ±1 dB max.
Phase Balance: ±8° max.
Power Handling: Forward: 30 W max.
Reversed: 1 W max.
Impedance: 50 Ohms
Connectors: SMA (F)
Finish: Painted Blue
Amplitude Tracking: ±1 dB max.
Phase Tracking: ±8° max.
Environmental Ratings:
Operating Temperature: -55°C to +85°C
Non-Operating Temperature: -65°C to +125°C
Humidity: Up to 95%, Non-Condensing (Operating)
Shock: MIL-STD-202, Method 213B Cond. B
Vibration: MIL-STD-202, Method 204D Cond. B
Altitude: MIL-STD-202, Method 105C Cond. B
Temperature Cycle: MIL-STD-202, Method 107D Cond. A
