APD-16-5R5G6R5G-NFF Preliminary
16 Way Power Divider

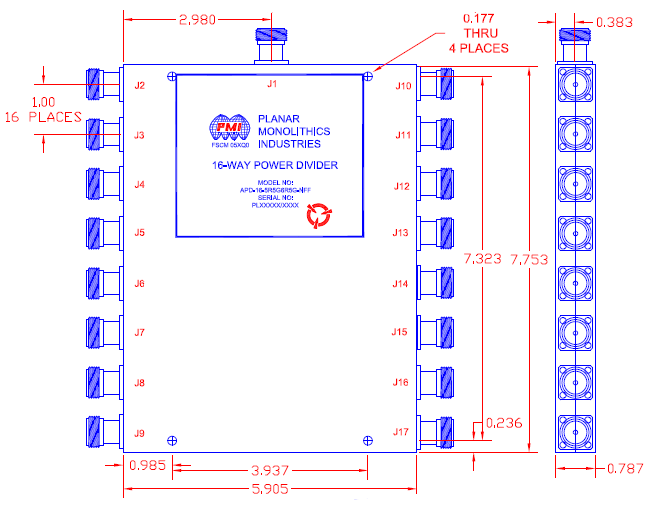

Quantic PMI Model APD-16-5R5G6R5G-NFF is a 5.5 to 6.5 GHz, 16 Way Power Divider featuring high isolation, low insertion loss and low VSWR that is designed for narrow band use and high reliability. Housing size is 5.905" x 7.753" x 0.5" and is outfitted with SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Type: | 16 Way |
| Frequency Range (GHz): | 5.5 to 6.5 |
| Frequency Min (GHz): | 5.5 |
| Frequency Max (GHz): | 6.5 |
| Isolation (dB): | 20 dB Min |
| Insertion Loss (dB): | 2 dB |
| VSWR (In/Out): | <=2.0:1 |
| Amplitude Balance: | ±0.6 dB |
| Phase Balance: | ±12° |
| Power Handling: | 20 W Max (Forward) 1 W Max (Reverse) |
| Impedance: | 50 Ohm |
| Connectors: | N Female |
| Size: | 5.905" x 7.753" x 0.5" |
| Finish: | Painted Blue |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -40 ºC to +70 ºC |
| Operating Humidity: | Up To 90%, Non-Condensing |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
