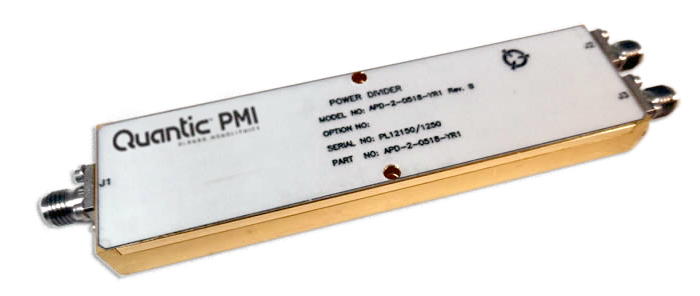

APD-2-0518-YR1

Buy Now

Model APD-2-0518-YR1 is a 2-Way Power Divider / Combiner that operates over the frequency range of 500MHz to 18 GHz. This model offers low loss of 3.5 dB typical (over 3 dB theoretical) with a VSWR of 1.5:1 typical into a 50 ohm impedance. The average isolation is 20 dB. This model offers a typical amplitude balance of ±0.45 dB and a typical phase balance of ±5 degrees. This model can handle input power levels of up to 25 watts into a load VSWR of 1.2:1 and up to 7.5 watts into a load VSWR of 2.0:1. The housing measures 3.75" x 1.0" x 0.4" and is gold plated.

Additional Product Information under, http://www.planarmonolithics.com/products/APD-2-0518-YR1.htm

Product Specifications

General Parameters:
Status: Active
Type: 2-Way
Frequency Min: 0.5 GHz
Frequency Max: 18 GHz
Isolation: 16.5 dB Typ
Isolation (Measured): 16.5 dB Typ (0.5 to 8.0 GHz),
21.0 dB Typ (8.0 to 18.0 GHz)
Insertion Loss: 1.8 dB typ
Insertion Loss (Measured): 1.8 dB Typ (0.5 to 8.0 GHz),
3.5 dB Typ (8.0 to 18.0 GHz)
Frequency Range: 0.5 to 18.0 GHz
VSWR (In/Out): 1.5:1 Typ (0.5 to 8.0 GHz),
1.6:1 Typ (8.0 to 18.0 GHz)
Amplitude Balance: ±0.2 dB Typ (0.5 to 8.0 GHz),
±0.45 dB Typ (8.0 to 18.0 GHz)
Phase Balance: ±4° Typ (0.5 to 8.0 GHz),
±5° Typ (8.0 to 18.0 GHz)
Input Power: 25 Watts CW into a load VSWR of 1.2:1, 7.5 Watts CW into a load VSWR of 2.0:1, 0.75 Watts CW into a load VSWR of infinite:1
Size: 3.75" x 1.0" x 0.4"
Environmental Ratings:
Operating Temperature: -55 ºC to +85 ºC
Non-Operating Temperature: -65 ºC to +125 ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
