APD-2-052 Preliminary

2 Way Power Divider

APD-2-052
Product Feature
Additional Documents

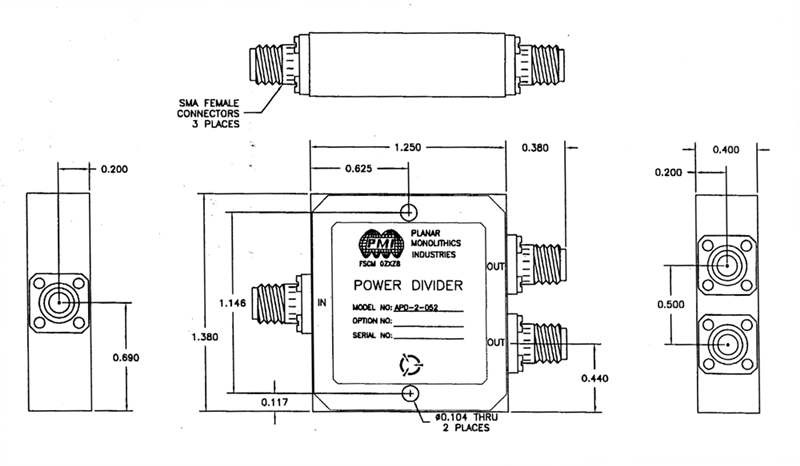

Quantic PMI Model APD-2-052 is a 0.5 to 2 GHz Power Divider that offers 20 dB minimum isolation while maintaining a typical insertion loss of 0.7 dB, a maximum phase balance of 3°, and a maximum amplitude balance of 0.3 dB. Housing size is 1.24" x 1.38" x 0.4" with SMA female connectors.

Product Specifications

General Parameters:
Status: Preliminary
Type: 2 Way
Frequency Range (GHz): 0.5 to 2
Frequency Min (GHz): 0.5
Frequency Max (GHz): 2
Isolation (dB): 20 dB Min
Insertion Loss (dB): 0.7 dB Max
VSWR (In/Out): 1.3:1 / 1.3:1
Amplitude Balance: 0.3 dB
Phase Balance: 3°
Average Power Into Load VSWR: 25 W (1.2:1),
15 W (2.1:1)
2 W (∞:1)
Connectors: SMA female
Size: 1.24" x 1.38" x 0.40"
Weight: 1.5 oz
Export Classification (ECCN): EAR99
Environmental Ratings:
Temperature (Operating): -54 ºC to +85 ºC
Temperature (Non-Operating): -65 ºC to +100 ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
