APD-2-05265-30W-SFF Preliminary
2 Way Power Divider

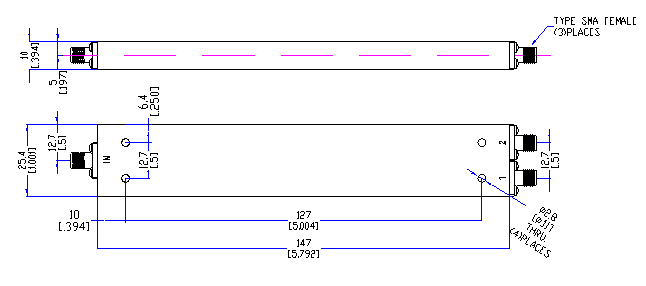

Quantic PMI Model APD-2-05265-30W-SFF is a 2 Way power divider with an operating frequency range of 0.5 to 26.5 GHz. Features of this model include excellent phase and amplitude balance, low insertion loss and VSWR, and high isolation. Package size is 5.792" x 1.0" x 0.394" with SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Type: | 2 Way |
| Frequency Range (GHz): | 0.5 to 26.5 |
| Frequency Min (GHz): | 0.5 |
| Frequency Max (GHz): | 26.5 |
| Isolation (dB): | 16 dB Min |
| Insertion Loss (dB): | 2.4 dB Max (Above 3.01 dB Split) |
| VSWR (In/Out): | 1.6:1 Max |
| Amplitude Balance: | ±0.5 dB Max |
| Phase Balance: | ± 5° Max |
| Power Handling: | 30 W Max (Forward) 1 W Max (Reverse) |
| Impedance: | 50 Ohm |
| Solder: | Lead Free, ROHS Compliant |
| Connectors: | SMA Female |
| Connector Body: | Passivated Stainless Steel |
| Size: | 5.792" x 1.0" x 0.394" |
| Finish: | Painted Blue |
| Weight: | 110 g |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -55 °C to +85 °C |
| Operating Humidity: | Up to 95% (Non-Condensing) |
