APD-2-0D5G18G-20W-NFF Preliminary
2 Way Power Divider
PMI Model APD-2-0D5G18G-20W-NFF is a 0.5 to 18 GHz, 2 way power divider featuring 1.8 dB insertion loss, 20 W power handling, and ±0.5 dB amplitude balance. Package size is 5.595" x 1.801" x 0.787" with Type N female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Type: | 2 Way |
| Frequency Range (GHz): | 0.5 to 18 |
| Frequency Min (GHz): | 0.5 |
| Frequency Max (GHz): | 18 |
| Isolation (dB): | 16 dB Min |
| Insertion Loss (dB): | 1.8 dB Max |
| VSWR (In/Out): | 1.6:1 Max |
| Amplitude Balance: | ±0.5 dB Max |
| Phase Balance: | ±5° Max |
| Power Handling: | 20 W CW Max (Forward) 1 W CW Max (Reverse) |
| Impedance: | 50 Ohm |
| Connectors: | N Female |

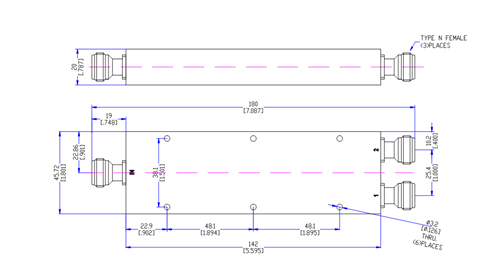

| Size: | 5.595" x 1.801" x 0.787" |
| Finish: | Painted Blue |
| Weight: | 480 g Typ |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -55 ℃ to +85 ℃ |
| Temperature (Non-Operating): | -65 to +125 ℃ |
| Operating Humidity: | Up to 95%, Non-Condensing |
| Shock: | MIL-STD-202, Method 213B Cond. B |
| Vibration: | MIL-STD-202, Method 204D Cond. B |
| Altitude: | MIL-STD-202, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202, Method 107D Cond. A |
