| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| Type: | 2 Way |
|---|
| Frequency Range (GHz): | 0.9 to 6 |
|---|
| Frequency Min (GHz): | 0.9 |
|---|
| Frequency Max (GHz): | 6 |
|---|
| Isolation (dB): | 18 dB Min |
|---|
| Insertion Loss (dB): | 0.5 dB Max (Above 3.01 dB Split) |
|---|
| Amplitude Balance: | ±0.3 dB Max |
|---|
| Phase Balance: | ±3° Max |
|---|
| Power Handling: | 30 W Max (Forward)
1 W Max (Reverse) |
|---|
| Impedance: | 50 Ohm |
|---|
| VSWR Input: | 1.4:1 Max |
|---|
| VSWR Output: | 1.3:1 Max |
|---|
| Amplitude Tracking: | ±0.3 dB unit to unit to a golden unit |
|---|
| Phase Tracking: | ±10° unit to unit to a golden unit |
|---|
| Connectors: | SMA Female |
|---|

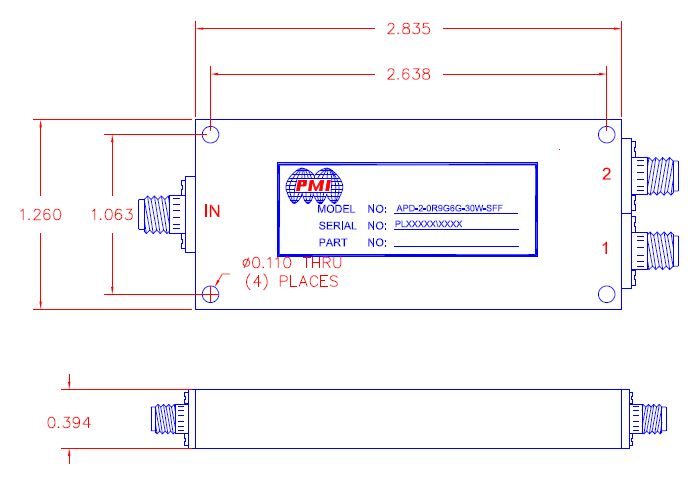

| Size: | 2.835" x 1.26" x 0.394" |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Temperature (Operating): | -55 °C to +85 °C |
|---|
| Temperature (Non-Operating): | -65 °C to +125 °C |
|---|
| Humidity: | MIL-STD-202F, METHOD 103B COND. B |
|---|
| Shock: | MIL-STD-202F, METHOD 213B COND. B |
|---|
| Vibration: | MIL-STD-202F, METHOD 204D COND. B |
|---|
| Altitude: | MIL-STD-202F, METHOD 105C COND. B |
|---|
| Temperature Cycle: | MIL-STD-202F, METHOD 107 |
|---|
