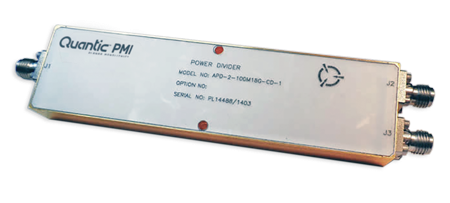

| General Parameters: |
|---|
| Status: | Active |
|---|
| Type: | 2 Way |
|---|
| Frequency Range (GHz): | 0.1 to 18 |
|---|
| Frequency Min (GHz): | 0.1 |
|---|
| Frequency Max (GHz): | 18 |
|---|
| Isolation (dB): | 6 dB Typ |
|---|
| Isolation (dB) - Measured: | 6 dB Typ (0.1 to 0.5 GHz)
16.5 dB Typ (0.5 to 8.0 GHz)
21 dB Typ (0.8 to 18 GHz) |
|---|
| Insertion Loss (dB): | 1.85 dB Typ |
|---|
| Insertion Loss (dB) - Measured: | 1.85 dB Typ (0.1 to 8 GHz)
3.5 dB Typ (8 to 18 GHz) |
|---|
| VSWR (In/Out): | 2.0:1 Typ (0.1 to 0.5 GHz)
1.5:1 Typ (0.5 to 0.8 GHz)
1.6:1 Typ (0.8 to 18 GHz) |
|---|
| Amplitude Balance: | ±0.2 dB Typ (0.1 to 8 GHz)
±0.45 dB Typ (8 to 18 GHz) |
|---|
| Phase Balance: | ±4º Typ (0.1 to 8 GHz)
±5º Typ (8 to 18 GHz) |
|---|
| Average Power Into Load VSWR: | 25 W (1.2:1), 7.5 W (2.0:1), 0.75 W (∞:1) |
|---|
| Connectors: | SMA Female |
|---|
| Size: | 3.75" x 1.0" x 0.4" |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Temperature (Operating): | -55 ºC to +85 ºC |
|---|
| Temperature (Non-Operating): | -65 ºC to +125 ºC |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
|---|
