APD-2-100M18G-SFF Active
2 Way Power Divider/Combiner
Buy Now
Additional Documents

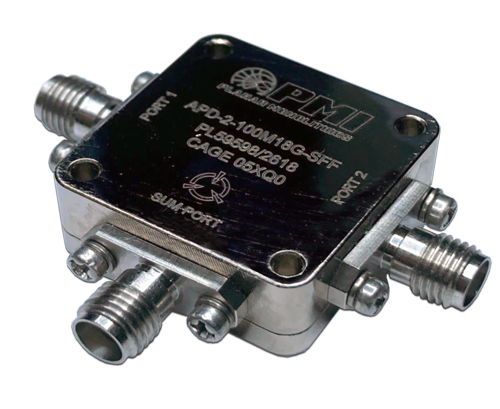

PMI Model APD-2-100M18G-SFF is a 0.1 to 18 GHz 2 way, 0°, 50 Ω power splitter/combiner that provides excellent power handling up to 0.6 W with low insertion loss, good isolation, and low phase and amplitude unbalance. Package size is 1.0'' x 1.0'' x 0.4'' with SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Frequency Range (GHz): | 0.1 to 18 |
| Frequency Min (GHz): | 0.1 |
| Frequency Max (GHz): | 18 |
| Isolation (dB): | 7 dB Min (0.1 to 4 GHz), 15 dB Min (4 to 18 GHz) |
| Insertion Loss (dB): | 8 dB Max |
| VSWR (In/Out): | 2.0:1 Max (Sum Port), 2.0:1 Max (Port 1 and Port 2) |
| Input Power: | 27 dBm CW Max (As a splitter), 24 dBm CW Max (As a combiner) |
| Amplitude Unbalance: | 0.5 dB Max |
| Phase Unbalance: | 20° Max |
| Connectors: | SMA Female |
| Finish: | Nickel Plated |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -55 ℃ to +85 ℃ |
| Temperature (Non-Operating): | -65 ℃ to +125 ℃ |
| Humidity: | MIL-STD-202, Method 103 Cond. B |
| Shock: | MIL-STD-202, Method 213 Cond. B |
| Vibration: | MIL-STD-202, Method 204 Cond. B |
| Altitude: | MIL-STD-202, Method 105 Cond. B |
| Temperature Cycle: | MIL-STD-202, Method 107 Cond. A |
