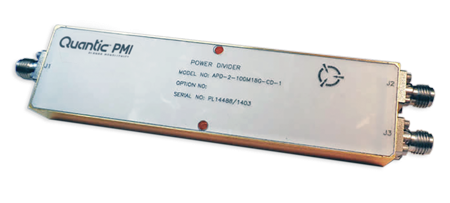

| General Parameters: |
|---|
| Status: | Active |
|---|
| Type: | 2 Way |
|---|
| Frequency Range (GHz): | 0.1 to 20 |
|---|
| Frequency Min (GHz): | 0.1 |
|---|
| Frequency Max (GHz): | 20 |
|---|
| Isolation (dB): | 6 dB Typ |
|---|
| Isolation (dB) - Measured: | 6 dB Typ (0.1 to 0.5 GHz),
16.5 dB Typ (0.5 to 8 GHz),
21 dB Typ (8 to 20 GHz) |
|---|
| Insertion Loss (dB): | 0.85 dB Typ |
|---|
| Insertion Loss (dB) - Measured: | 0.85 dB Typ (0.1 to 8 GHz),
3.5 dB Typ (8 to 20 GHz) |
|---|
| VSWR (In/Out): | 2.0:1 Typ (0.1 to 0.5 GHz),
1.5:1 Typ (0.5 to 8 GHz),
1.6:1 Typ (8 to 20 GHz) |
|---|
| Amplitude Balance: | ±0.2 dB Typ (0.1 to 8 GHz),
±0.45 dB Typ (8 to 20 GHz) |
|---|
| Phase Balance: | ±4° Typ (0.1 to 8 GHz),
±5° Typ (8 to 20 GHz) |
|---|
| Average Power Into Load VSWR: | 1.2:1 (25 W),
2.0:1 (7.5 W),
∞:1 (0.75 W) |
|---|
| Size: | 3.75" x 1.0" x 0.4" |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Temperature (Operating): | -55 ºC to +85 ºC |
|---|
| Temperature (Non-Operating): | -65 ºC to +125 ºC |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
|---|
