| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| Type: | 2 Way |
|---|
| Frequency Range (GHz): | 0.1 to 0.52 |
|---|
| Frequency Min (GHz): | 0.1 |
|---|
| Frequency Max (GHz): | 0.52 |
|---|
| Isolation (dB): | 23 dB Min |
|---|
| Insertion Loss (dB): | 0.6 dB Max (Above 3.01 dB Split) |
|---|
| VSWR (In/Out): | 1.3:1 Max / 1.25:1 Max |
|---|
| Amplitude Balance: | ±0.2 dB Max |
|---|
| Phase Balance: | ±2º Max |
|---|
| Power Handling: | 50 W Max (Forward)
1 W Max (Reverse) |
|---|
| Impedance: | 50 Ohm |
|---|
| Connectors: | N Female |
|---|

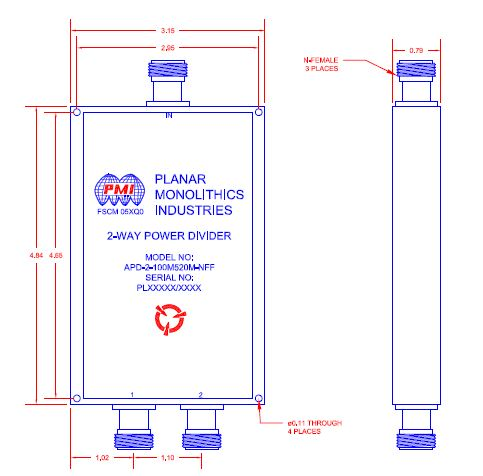

| Size: | 4.84" x 3.15" x 0.79" |
|---|
| Weight: | 430 g |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Temperature (Operating): | -55 ºC to +85 ºC |
|---|
| Temperature (Non-Operating): | -65 ºC to +125 ºC |
|---|
| Humidity: | Up to 95% (Non-Condensing) |
|---|
| Shock: | MIL-STD-202, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202, Method 107D Cond. A |
|---|
