| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| Type: | 2 Way |
|---|
| Frequency Range (GHz): | 1 to 2 |
|---|
| Frequency Min (GHz): | 1 |
|---|
| Frequency Max (GHz): | 2 |
|---|
| Isolation (dB): | 18 dB Min |
|---|
| Insertion Loss (dB): | 0.4 dB Max (Above 3.01 dB Split) |
|---|
| VSWR (In/Out): | 1.4:1 Max |
|---|
| Amplitude Balance: | ±0.3 dB Max |
|---|
| Phase Balance: | ±3° Max |
|---|
| Power Handling: | 300 W Max (Forward)
20 W Max (Reverse) |
|---|
| Impedance: | 50 Ohm |
|---|
| Connectors: | Type-N Female |
|---|

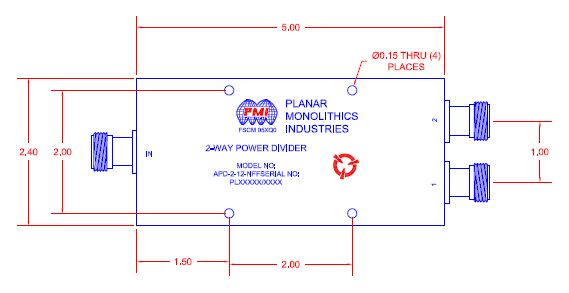

| Size: | 5.0" x 2.4" x 0.87" |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Temperature (Operating): | -55 °C to +85 °C |
|---|
| Temperature (Non-Operating): | -65 °C to +125 °C |
|---|
| Humidity: | UP to 95%, NON-CONDENSING |
|---|
| Shock: | MIL-STD-202, METHOD 213B COND. B |
|---|
| Vibration: | MIL-STD-202, METHOD 204D COND. B |
|---|
| Altitude: | MIL-STD-202, METHOD 105C COND. B |
|---|
| Temperature Cycle: | MIL-STD-202, METHOD 107D COND. A |
|---|
