2-Way Power Divider

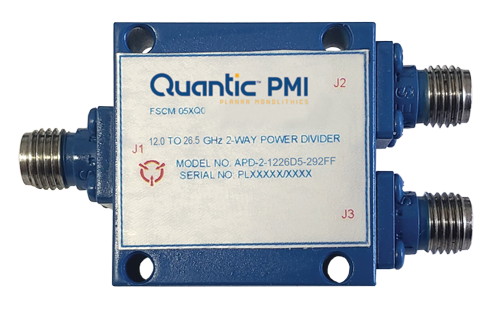

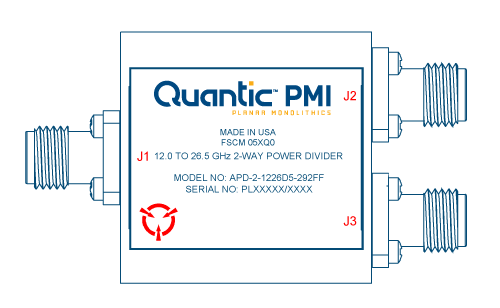

PMI Model No. APD-2-1226D5-292FF is a 2-Way Power Divider operating over the 12.0 to 26.5 GHz frequency range. This model has a maximum insertion loss of 3.0 dB and has very good phase and amplitude match. The compact 1.00" x 1.00" x 0.40" housing is outfitted with 2.92mm female connectors.

Product Specifications

General Parameters:
Status: Active
Type: 2-Way
Frequency Min: 12.0 GHz
Frequency Max: 26.5 GHz
Isolation: 20 dB typ., 17 dB Min
Insertion Loss: 3.0 dB Max
VSWR (In/Out): 2.0:1 Max
Amplitude Balance: ±0.2 dB typ., ±0.4 dB max.
Phase Balance: ±3.0° Typ, ±6.0° Max
Connectors: 2.92mm (F) Removable
Finish: Painted Blue (Hermetic Sealing Option Avaialbe)
Size: 1.00" x 1.00" x 0.40"
Reverse Power Handling: 1 W Min
Environmental Ratings:
Operating Temperature: -55 °C to +85 °C
Non-Operating Temperature: -65 °C to +125 °C
Humidity: MIL-STD-202, Method 103B Cond. B
Shock: MIL-STD-202, Method 213B Cond. B
Vibration: MIL-STD-202, Method 204D Cond. B
Altitude: MIL-STD-202, Method 105C Cond. B
Temperature Cycle: MIL-STD-202, Method 107D Cond. A
