APD-2-18G40G-20W-292FF-CC Preliminary
2 Way Power Divider

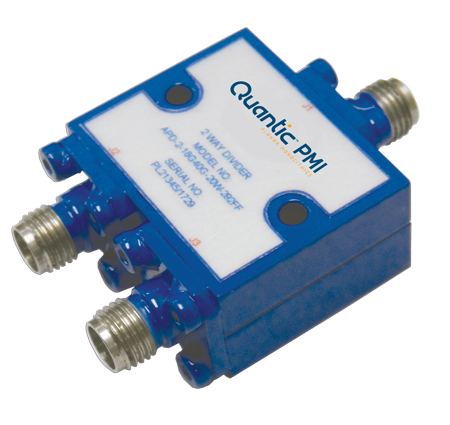

Quantic PMI Model APD-2-18G40G-20W-292FF-CC is a 2 Way Power Divider operating between 18 to 40 GHz that offers low insertion loss of 1.5 dB maximum as well as having 18 dB of isolation. Housing measures 1.06" x 0.85" x 0.5" and is outfitted with 2.92mm female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Type: | 2 Way |
| Frequency Range (GHz): | 18 to 40 |
| Frequency Min (GHz): | 18 |
| Frequency Max (GHz): | 40 |
| Isolation (dB): | 18 dB Min |
| Insertion Loss (dB): | 1.5 dB Max |
| VSWR (In/Out): | 1.6:1 Max |
| Amplitude Balance: | ±0.3 dB Max |
| Phase Balance: | ±4° Max |
| Power Handling: | 20 W CW Max, 3 kW Peak Max |
| Impedance: | 50 Ohm |
| Connectors: | 2.92mm Female |
| Size: | 1.06" x 0.85" x 0.5" |
| Sealing: | IP 66 |
| Finish: | Painted Blue Conformal Coating |
| Weight: | 45 g Max |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -55 ºC to +105 ºC |
| Operating Humidity: | 100% (Condensing) |
