APD-2-1G18G-SFF Preliminary
2 Way Power Divider

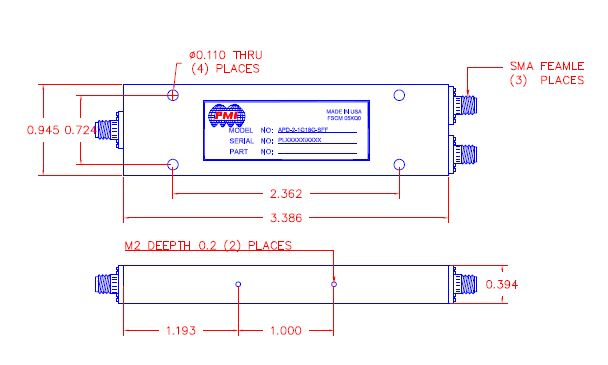

Quantic PMI Model APD-2-1G18G-SFF is a 2 Way power divider operating in the frequency range of 1 to 18 GHz with an isolation of 18 dB minimum and a 1.4 dB insertion loss (Above 3.01 dB Split). Housing measures 3.386" x 0.945" x 0.394" with SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Type: | 2 Way |
| Frequency Range (GHz): | 1 to 18 |
| Frequency Min (GHz): | 1 |
| Frequency Max (GHz): | 18 |
| Isolation (dB): | 18 dB Min |
| Insertion Loss (dB): | 1.4 dB Max (Above 3.01 dB Split) |
| Amplitude Balance: | ± 5° Max |
| Power Handling: | 30 W Max (Forward) 1 W Max (Reverse) |
| Impedance: | 50 Ohm |
| VSWR Input: | 1.4:1 Max |
| VSWR Output: | 1.4:1 Max |
| Connectors: | SMA Female |
| Size: | 3.386" x 0.945" x 0.394" |
| Finish: | Painted Blue |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -55 °C to +85 °C |
| Temperature (Non-Operating): | -65 °C to +125 °C |
| Humidity: | MIL-STD-202F, METHOD 103B COND. B |
| Shock: | MIL-STD-202F, METHOD 213B COND. B |
| Vibration: | MIL-STD-202F, METHOD 204D COND. B |
| Altitude: | MIL-STD-202F, METHOD 105C COND. B |
| Temperature Cycle: | MIL-STD-202F, METHOD 107 |
