APD-2-1G40G-292FF Preliminary
2 Way Power Divider
Quantic PMI Model APD-2-1G40G-292FF is a 2 Way power divider operating in the frequency range of 1 to 40 GHz with an isolation of 16 dB, insertion loss of 0.6 dB, amplitude balance of ±0.5 dB and a phase balance of ±0.5°. Package size is 3.1" x 1.0" x 0.39" with 2.92mm female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Type: | 2 Way |
| Frequency Range (GHz): | 1 to 40 |
| Frequency Min (GHz): | 1 |
| Frequency Max (GHz): | 40 |
| Isolation (dB): | 16 dB Min |
| Insertion Loss (dB): | 3.4 dB Max (Above 3.01 dB Split) |
| Amplitude Balance: | ±0.5 dB Max |
| Phase Balance: | ±5° Max |
| Power Handling: | 10 W Max (Forward) 0.5 W Max (Reverse) |
| Impedance: | 50 Ohm |
| VSWR Input: | 1.55:1 Max |
| VSWR Output: | 1.5:1 Max |
| Connectors: | 2.92mm Female |

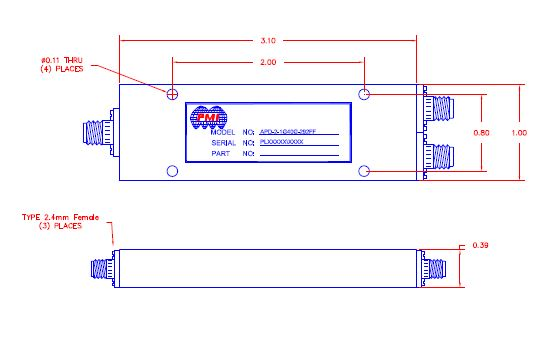

| Size: | 3.1" x 1.0" x 0.39" |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -55 °C to +85 °C |
| Temperature (Non-Operating): | -65 °C to +125 °C |
| Humidity: | MIL-STD-202F, METHOD 103B COND. B |
| Shock: | MIL-STD-202F, METHOD 213B COND. B |
| Vibration: | MIL-STD-202F, METHOD 204D COND. B |
| Altitude: | MIL-STD-202F, METHOD 105C COND. B |
| Temperature Cycle: | MIL-STD-202F, METHOD 107 |
