| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| Type: | 2 Way |
|---|
| Frequency Range (GHz): | 2 to 18 |
|---|
| Frequency Min (GHz): | 2 |
|---|
| Frequency Max (GHz): | 18 |
|---|
| Isolation (dB): | 20 dB Min (2 to 8 GHz),
19 dB Min (8 to 18 GHz) |
|---|
| Insertion Loss (dB): | 0.5 dB Max (2 to 8 GHz),
1.2 dB Max (8 to 18 GHz) |
|---|
| VSWR (In/Out): | 1.3:1 (2 to 8 GHz), 1.4:1 ( 8 to 18 GHz) |
|---|
| Amplitude Balance: | 0.2 dB (2 to 8 GHz),0.3 dB (8 to 18 GHz) |
|---|
| Phase Balance: | 3° (2 to 8 GHz),
6° (8 to 18 GHz) |
|---|

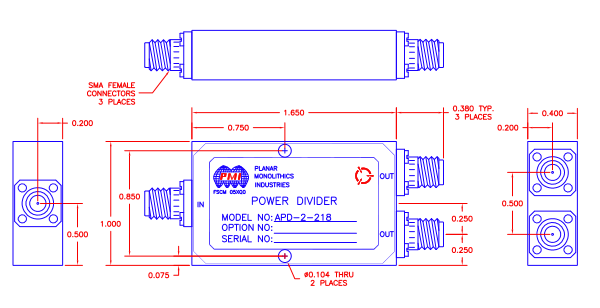

| Size: | 1.65" x 1.00" x 0.40" |
|---|
| Weight: | 1.4 oz |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Temperature (Operating): | -55 ºC to +85 ºC |
|---|
| Temperature (Non-Operating): | -65 ºC to +125 ºC |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
|---|
