APD-2-218-FD Active

2-Way Power Divider

Product Feature

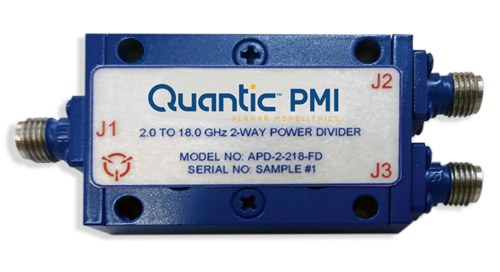

Quantic PMI Model No. APD-2-218-FD is a 2-way power divider operating over the 2.0 to 18.0 GHz frequency range. This model has a maximum insertion loss of 1.5 dB and has excellent phase and amplitude match. The compact 1.58" x 1.00" x 0.40" housing is outfitted with 2.92mm female connectors.

Product Specifications

General Parameters:
Status: Active
Type: 2-Way
Frequency Min: 2.0 GHz
Frequency Max: 18.0 GHz
Isolation: 16 dB Min
Insertion Loss: 1.5 dB Max
Frequency Range: 2.0 to 18.0 GHz
VSWR (In/Out): 2.0:1 Max
Amplitude Balance: ±0.5 dB Max
Phase Balance: ±2.5° Max
Connectors: 2.92mm (F) Removable
Finish: Painted Blue
Size: 1.58" x 1.00" x 0.40"
Average Power: 25 W (Into 1.2:1 Load VSWR)
7.5 W (Into 2.0:1 Load VSWR)
0.75 W (Into Infinity:1 Load VSWR)
Environmental Ratings:
Operating Temperature: -55 °C to +85 °C
Non-Operating Temperature: -65 °C to +125 °C
Humidity: MIL-STD-202, Method 103B Cond. B
Shock: MIL-STD-202, Method 213B Cond. B
Vibration: MIL-STD-202, Method 204D Cond. B
Altitude: MIL-STD-202, Method 105C Cond. B
Temperature Cycle: MIL-STD-202, Method 107D Cond. A
