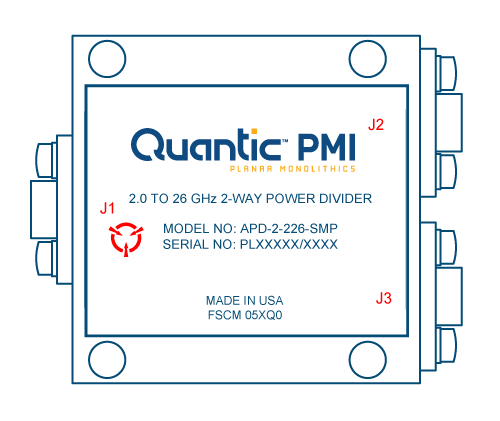

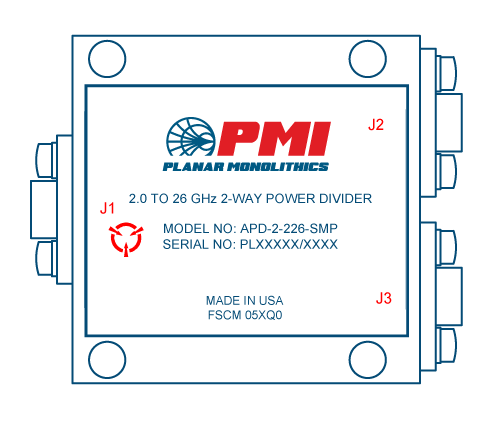

| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| Type: | 2 Way |
|---|
| Frequency Range (GHz): | 2 to 26 |
|---|
| Frequency Min (GHz): | 2 |
|---|
| Frequency Max (GHz): | 26 |
|---|
| Isolation (dB): | 20 dB Typ,
14 dB Min |
|---|
| Insertion Loss (dB): | 3 dB Max |
|---|
| VSWR (In/Out): | 2.0:1 Max |
|---|
| Amplitude Balance: | ±0.2 dB Typ,
±0.4 dB Max |
|---|
| Phase Balance: | ±3° Typ,
±6° Max |
|---|
| Reverse Power: | 1 W Min |
|---|
| Connectors: | SMP/GPO Full detent removable |
|---|
| Size: | 25.4 mm x 25.4 mm x 10.16 mm
[1.00" x 1.00" x 0.40"]
Excluding Connectors |
|---|
| Finish: | Gold plated with hermetic sealing option available |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Temperature (Operating): | -55 °C to +85 °C |
|---|
| Temperature (Non-Operating): | -65 °C to +125 °C |
|---|
| Humidity: | MIL-STD-202, Method 103B Cond B. |
|---|
| Shock: | MIL-STD-202, Method 213B Cond B. |
|---|
| Vibration: | MIL-STD-202, Method 204D Cond B. |
|---|
| Altitude: | MIL-STD-202, Method 105C Cond B |
|---|
| Temperature Cycle: | MIL-STD-202, Method 107D Cond A. |
|---|
