APD-2-26D5G40G-20W-292FF Active

2 Way Power Divider

APD-2-26D5G40G-20W-292FF
Product Feature

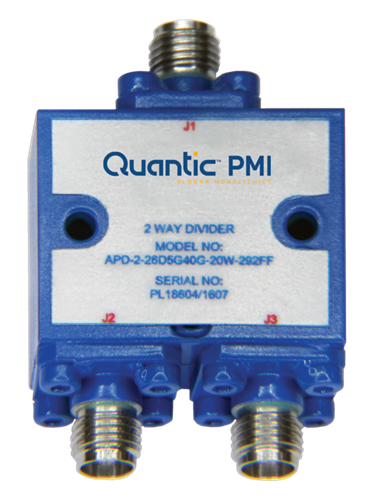

Quantic PMI Model APD-2-26D5G40G-20W-292FF is a 2 Way Divider operating between 26.5 to 40 GHz that offers 16 dB minimum isolation while maintaining a typical insertion loss of 0.8 dB, a maximum phase balance of 4°, and a maximum amplitude balance of 0.3 dB. Housing measures 1.02" x 0.75" x 0.39" and is outfitted with 2.92mm female connectors.

Product Specifications

General Parameters:
Status: Active
Type: 2 Way
Frequency Range (GHz): 26.5 to 40
Frequency Min (GHz): 26.5
Frequency Max (GHz): 40
Isolation (dB): 16 dB Min
Isolation (dB) - Measured: 16 dB Min 20 dB Typ - Measured 28.6 dB
Insertion Loss (dB): 1.3 dB Max, 0.8 dB Typ
Insertion Loss (dB) - Measured: 1.3 dB Max 0.8 dB Typ - Measured 0.8 dB
VSWR (In/Out): 1.6 Max, 1.4 Typ / 1.5 Max, 1.3 Typ
Amplitude Balance: 0.3 dB, 0.15 dB Typ
Phase Balance: ±4° Max, ±2° Typ
Power Handling: 20 W Max (Forward)
0.5 W Max (Reverse)
Impedance: 50 Ohm
Connectors: 2.92mm Female
Size: 1.02" x 0.75" x 0.39"
Finish: Painted Blue
Export Classification (ECCN): EAR99
Environmental Ratings:
Temperature (Operating): -45 ºC to +85 ºC
