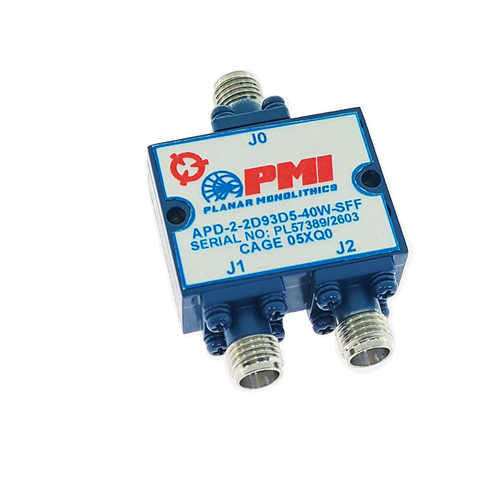

APD-2-2D93D5-40W-SFF Active
2 Way Power Divider
PMI Model APD-2-2D93D5-40W-SFF is a 2.9 to 3.5 GHz, 2 way power divider featuring insertion loss less than 0.25 dB and isolation greater than 23 dB. This product's housing size is 1.04" x 0.8" x 0.38" with SMA Female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Type: | 2 Way |
| Frequency Range (GHz): | 2.9 to 3.5 |
| Frequency Min (GHz): | 2.9 |
| Frequency Max (GHz): | 3.5 |
| Isolation (dB): | 23 dB Min |
| Insertion Loss (dB): | 0.25 dB Max |
| VSWR (In/Out): | 1.3:1 / 1.2:1 Max |
| Amplitude Balance: | ±0.1 dB Max |
| Phase Balance: | ±2° Max |
| Power Handling: | 40 W Max (Forward) 1 W Max (Reverse) |
| Impedance: | 50 Ohm |
| Connectors: | SMA Female |
| Size: | 1.04" x 0.8" x 0.38" |
| Finish: | Painted Blue |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -55 °C to +85 °C |
| Humidity: | Up to 95%, Non-Condensing |
| Shock: | MIL-STD-202, Method 213B Cond. B |
| Vibration: | MIL-STD-202, Method 204D Cond. B |
| Altitude: | MIL-STD-202, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202, Method 107D Cond. A |
