APD-2-2G18G-GC-SMF Preliminary
2-Way Power Divider

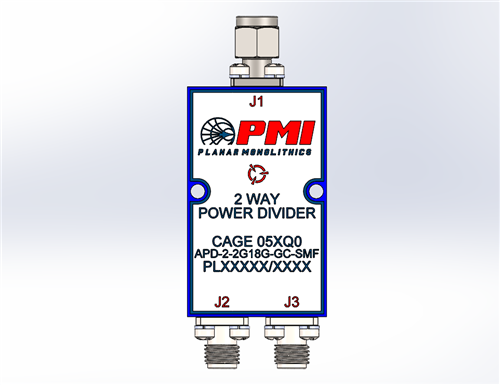

PMI Model APD-2-2G18G-GC-SMF is a 2 Way Power Divider operating over the 2 to 18 GHz frequency range that offers a minimum isolation of 20 dB, a maximum insertion loss of 1.2 dB, and an amplitude balance of ±3 dB maximum. Housing measures 1.65" x 1.0" x 0.4" and is outfitted with SMA male/female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Type: | 2 Way |
| Frequency Range (GHz): | 2 to 18 |
| Frequency Min (GHz): | 2 |
| Frequency Max (GHz): | 18 |
| Isolation (dB): | 20 dB Min |
| Insertion Loss (dB): | 0.5 Max @ 2 to 8 GHz 1.2 Max @ 8 to 18 GHz |
| Amplitude Balance: | ±0.2 dB Max @ 2 to 8 GHz ±0.3 dB Max @ 8 to 18 GHz |
| Phase Balance: | 5° Max |
| Power Handling: | 30 W Max (Forward) |
| Impedance: | 50 Ohm |
| VSWR Input: | 1.30:1 Max @ 2 to 8 GHz 1.40:1 Max @ 8 to 18 GHz |
| VSWR Output: | 1.25:1 Max @ 2 to 8 GHz 1.40:1 Max @ 8 to 18 GHz |
| Connectors: | J1: SMA Male J2 & J3: SMA Female |
| Finish: | Painted Blue |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -55 ºC to +85 ºC |
| Operating Humidity: | Up to 90% (Non-Condensing) |
