APD-2-2G8G-SFF-30W Active
2 Way Power Divider

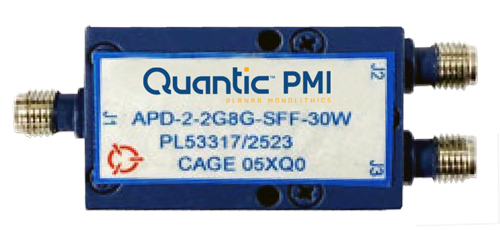

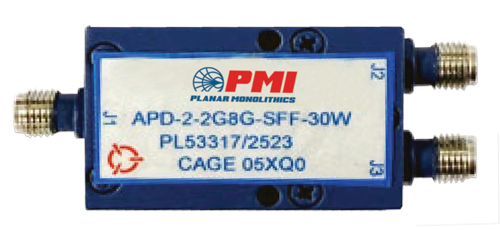

PMI Model APD-2-2G8G-SFF-30W is a 2 Way power divider that operates over the 2 to 8 GHz frequency range with an isolation of 20 dB, insertion loss of 0.6 dB, amplitude balance of ±0.2 dB and a phase balance of ±0.2°. Package size is 1.5" x 0.98" x 0.39" with SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Type: | 2 Way |
| Frequency Range (GHz): | 2 to 8 |
| Frequency Min (GHz): | 2 |
| Frequency Max (GHz): | 8 |
| Isolation (dB): | 20 dB Min |
| Insertion Loss (dB): | 0.6 dB Max (Above 3.01 dB Split) |
| VSWR (In/Out): | 1.3:1 Max (J1) 1.2:1 Max (J2, J3) |
| Amplitude Balance: | ±0.2 dB Max |
| Phase Balance: | ±2 Max |
| Power Handling: | 30 W Max (Forward) 1 W Max (Reverse) |
| Impedance: | 50 Ohm |
| Connectors: | SMA Female |
| Size: | 1.50" x 0.98" x 0.39" |
| Finish: | Painted Blue |
| Weight: | 30 g Typ |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -55 °C to +85 °C |
| Temperature (Non-Operating): | -65 °C to +125 °C |
| Humidity: | Up to 95%, non-condensing (Operating) |
| Shock: | MIL-STD-202, Method 213B Cond. B |
| Vibration: | MIL-STD-202, Method 204D Cond. B |
| Altitude: | MIL-STD-202, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202, Method 107D Cond. A |
