APD-2-38-SFF-10W Preliminary
2 Way Power Divider

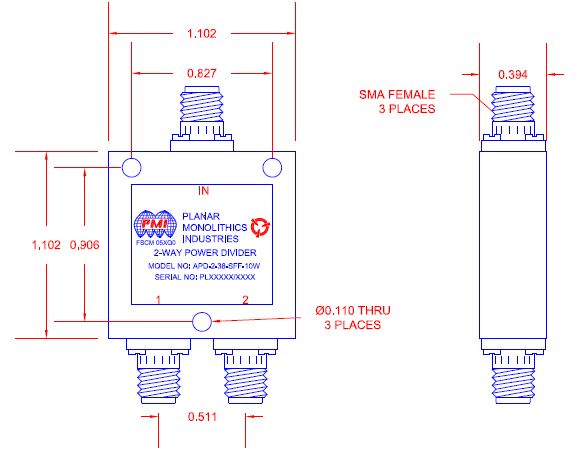

Quantic PMI Model APD-2-38-SFF-10W is a 2 Way Power Divider that operates over the frequency range of 3 to 8 GHz frequency range that has a maximum insertion loss of 0.65 dB (above 31 dB split) and a minimum isolation of 20 dB. Housing size is 1.102" x 1.102" x 0.394" and is outfitted with SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Type: | 2 Way |
| Frequency Range (GHz): | 3 to 8 |
| Frequency Min (GHz): | 3 |
| Frequency Max (GHz): | 8 |
| Isolation (dB): | 20 dB Min |
| Insertion Loss (dB): | 0.65 dB Max (Above 3.01 dB Split) |
| VSWR (In/Out): | 1.3:1 Max / 1.25:1 Max |
| Amplitude Balance: | ±0.1 dB Max |
| Phase Balance: | ±1° Max |
| Power Handling: | 10 W Max Inphase Signal |
| Impedance: | 50 Ohm |
| Connectors: | SMA Female |
| Size: | 1.102" x 1.102" x 0.394" |
| Finish: | Painted Blue |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -55 °C to +85 °C |
| Temperature (Non-Operating): | -65 °C to +125 °C |
| Humidity: | Up to 95% (Non-Condensing) (Operating) |
| Shock: | MIL-STD-202, Method 213B Cond. B |
| Vibration: | MIL-STD-202, Method 204D Cond. B |
| Altitude: | MIL-STD-202, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202, Method 107D Cond. A |
