APD-2-3G45G-20W-24FF Preliminary
2 Way Power Divider

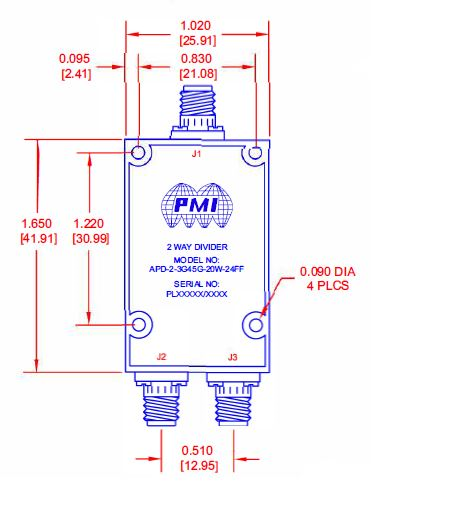

Quantic PMI Model APD-2-3G45G-20W-24FF is a 2 Way power divider operating between 3 to 45 GHz that offers low insertion loss of 2 dB maximum as well as having 15 dB of isolation. Housing size is 1.65" x 1.02" x 0.5" with SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Type: | 2 Way |
| Frequency Range (GHz): | 3 to 45 |
| Frequency Min (GHz): | 3 |
| Frequency Max (GHz): | 45 |
| Isolation (dB): | 15 dB Min |
| Insertion Loss (dB): | 2 dB Max |
| VSWR (In/Out): | 1.8:1 / 1.5:1 Max |
| Amplitude Balance: | ±0.5 dB Max |
| Power Handling: | 20 W CW Max (Forward) 200 W Peak Max |
| Impedance: | 50 Ohm |
| Connectors: | 2.4mm Female |
| Size: | 1.65" x 1.02" x 0.50" |
| Finish: | Painted Blue |
| Weight: | 2 oz |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -45 °C to +85 °C |
