APD-2-48-292FF

2-Way Power Divider

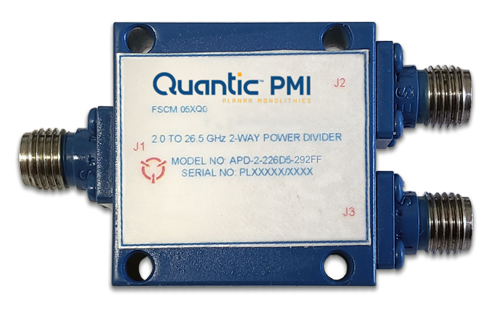

PMI Model No. APD-2-48-292FF is a 2-Way Power Divider operating over the 4.0 to 8.0 GHz frequency range. This model has a maximum insertion loss of 1.2 dB and has very good phase and amplitude match. The compact 1.00" x 1.00" x 0.40" housing is outfitted with 2.92mm female connectors.

Product Specifications

General Parameters:
Status: Active
Type: 2-Way
Frequency Min: 4.0 GHz
Frequency Max: 8.0 GHz
Isolation: 20 dB Typ, 17 dB Min
Insertion Loss: 1.2 dB Max
VSWR (In/Out): 1.7:1 Max
Amplitude Balance: ±0.15 dB Typ, ±0.25 dB Max
Phase Balance: ±0.75° Typ, ±1.5° Max
Connectors: 2.92mm (F) Removable
Finish: Painted Blue (Hermetic Sealing Option Available)
Size: 1.00" x 1.00" x 0.40"
Reverse Power Handling: 1 W Min
Environmental Ratings:
Operating Temperature: -55 °C to +85 °C
Non-Operating Temperature: -65 °C to +125 °C
Humidity: MIL-STD-202, Method 103B Cond. B
Shock: MIL-STD-202, Method 213B Cond. B
Vibration: MIL-STD-202, Method 204D Cond. B
Altitude: MIL-STD-202, Method 105C Cond. B
Temperature Cycle: MIL-STD-202, Method 107D Cond. A
