APD-2-500M2G-SFF Preliminary

2 Way Power Divider

APD-2-500M2G-SFF
Product Feature

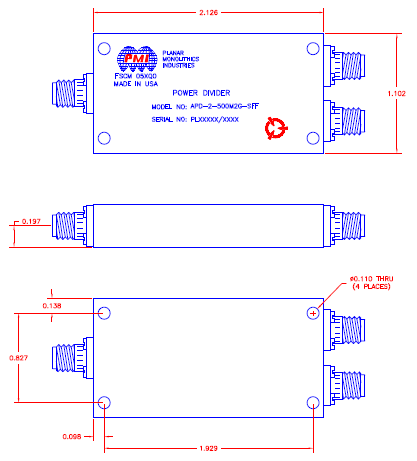

Quantic PMI Model APD-2-500M2G-SFF is a 2 Way Power Divider featuring high isolation, low insertion loss and low VSWR that is designed for broadband use and high reliability. Housing measures 2.126" x 1.102" x 0.394" and is outfitted with SMA Female connectors.

Product Specifications

General Parameters:
Status: Preliminary
Type: 2 Way
Frequency Range (GHz): 0.5 to 2
Frequency Min (GHz): 0.5
Frequency Max (GHz): 2
Isolation (dB): 20 dB Min
Insertion Loss (dB): 0.5 dB Max
VSWR (In/Out): 1.25:1 Max
Amplitude Balance: ±0.2 dB Max
Phase Balance: ±2° Max
Power Handling: 20 W Max (Forward)
1 W Max (Reverse)
Impedance: 50 Ohm
Connectors: SMA Female
Size: 2.126" x 1.102" x 0.394"
Finish: Painted Blue
Export Classification (ECCN): EAR99
Environmental Ratings:
Temperature (Operating): -55 ºC to +85 ºC
Temperature (Non-Operating): -65 ºC to +125 ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
