APD-2-800M2D5G-NFF-50W * Active
2 Way Power Divider
Buy Now
Additional Documents
- Product Feature
- Test Report - 7/31/15
- S-Parameters
- PL02810 - Unit Data
- PL02812 - Unit Data
- PL02813 - Unit Data
- PL02814 - Unit Data
- PL02853 - Unit Data
- PL02854 - Unit Data
- PL02855 - Unit Data
- PL02856 - Unit Data
- PL02857 - Unit Data
- PL02858 - Unit Data
- PL02859 - Unit Data
- PL13098 - Unit Data
- PL13099 - Unit Data
- PL13100 - Unit Data
- PL13157 - Unit Data
- PL13158 - Unit Data
- PL13159 - Unit Data
- PL13160 - Unit Data
- PL13161 - Unit Data
- PL13162 - Unit Data
- PL13163 - Unit Data
- PL13164 - Unit Data
- PL13165 - Unit Data
- PL13166 - Unit Data
- PL13167 - Unit Data
- PL13168 - Unit Data
- PL13169 - Unit Data
- PL13170 - Unit Data
- PL13171 - Unit Data
- PL23896 - Unit Data
- PL23897 - Unit Data
- PL23898 - Unit Data
- PL23899 - Unit Data
- PL23900 - Unit Data
- PL34079 - Unit Data
- PL34080 - Unit Data
- PL34081 - Unit Data
- PL34082 - Unit Data
- PL34083 - Unit Data
- PL34125 - Unit Data
- PL34126 - Unit Data
- PL34127 - Unit Data
- PL34128 - Unit Data
- PL34129 - Unit Data
- PL34130 - Unit Data
- PL34131 - Unit Data
- PL34182 - Unit Data
- PL34183 - Unit Data
- PL34184 - Unit Data
- PL34185 - Unit Data
- PL34186 - Unit Data
- PL34187 - Unit Data
- PL44338 - Unit Data
- PL44339 - Unit Data
- PL44340 - Unit Data
- PL44341 - Unit Data
- PL44506 - Unit Data
- PL44507 - Unit Data
- PL44508 - Unit Data
- PL44509 - Unit Data
- PL44510 - Unit Data

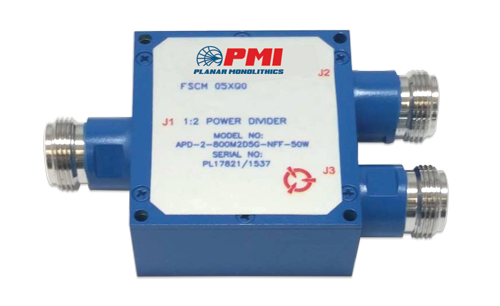

PMI Model APD-2-800M2D5G-NFF-50W is a Two-Way Power Divider designed for broadband use and high reliability. Operates over the frequency range of 0.8 to 2.5 GHz and features an insertion loss of ≤0.4 dB, a VSWR of 1.25:1, an isolation of 22 dB minimum, an amplitude balance of ±0.2 dB, a phase balance of ±2°, and a power handling of 50 W. This model is offered in a housing measuring 1.89" x 25" x 0.79" with N-female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Type: | 2 Way |
| Frequency Range (GHz): | 0.8 to 2.5 |
| Frequency Min (GHz): | 0.8 |
| Frequency Max (GHz): | 2.5 |
| Isolation (dB): | 22 dB Min |
| Isolation (dB) - Measured: | 22 dB Min - Measured 25.72 dB |
| Insertion Loss (dB): | 0.4 dB Max |
| Insertion Loss (dB) - Measured: | 0.4 dB Max- Measured 0.31 dB |
| VSWR (In/Out): | 1.25:1 / 1.13:1 |
| Amplitude Balance: | ±0.2 dB |
| Phase Balance: | ±2° |
| Power Handling: | 50 W Max (Forward) 1 W Max (Reverse) |
| Impedance: | 50 Ohm |
| Connectors: | Type-N Female |
| Size: | 1.89" x 2.047" x 0.787" |
| Finish: | Painted Blue |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -40 ºC to +70 ºC |
| Temperature (Non-Operating): | -65 ºC to +125 ºC |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
