APD-2-90M500M-NFF Preliminary
4 Way Power Divider
Quantic PMI Model APD-2-90M500M-NFF is a 2 Way power divider operating in the frequency range of 0.09 to 0.5 GHz that has an isolation of 21 dB minimum and an insertion loss of 0.6 dB maximum. Housing size is 4.84" x 3.15" x 0.79" with Type N female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Type: | 2 Way |
| Frequency Range (GHz): | 0.09 to 0.5 |
| Frequency Min (GHz): | 0.09 |
| Frequency Max (GHz): | 0.5 |
| Isolation (dB): | 21 dB Min |
| Insertion Loss (dB): | 0.6 dB Max |
| VSWR (In/Out): | 1.3:1 / 1.2:1 |
| Amplitude Balance: | ±0.2 dB Max |
| Phase Balance: | ±2° Max |
| Power Handling: | 50 W Max (Forward) 1 W Max (Reverse) |
| Impedance: | 50 Ohm |
| Connectors: | Type-N Female |

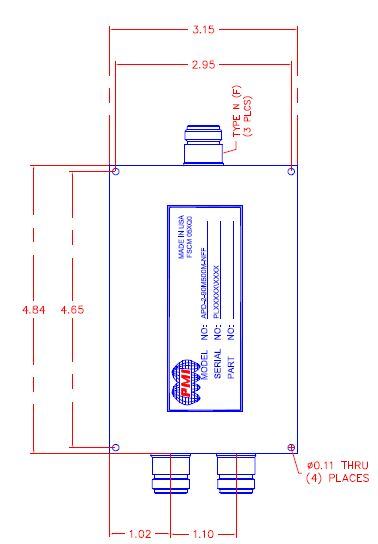

| Size: | 4.84" x 3.15" x 0.79" |
| Finish: | Painted Blue |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -65 °C to +100 °C |
| Temperature (Non-Operating): | -55 °C to +80 °C |
| Humidity: | MIL-STD-202F, METHOD 103B COND. B |
| Shock: | MIL-STD-202F, METHOD 213B COND. B |
| Vibration: | MIL-STD-202F, METHOD 204D COND. B |
| Altitude: | MIL-STD-202F, METHOD 105C COND. B |
| Temperature Cycle: | MIL-STD-202F, METHOD 107 |
