APD-2-90M500M-SFF Preliminary

2 Way Power Divider

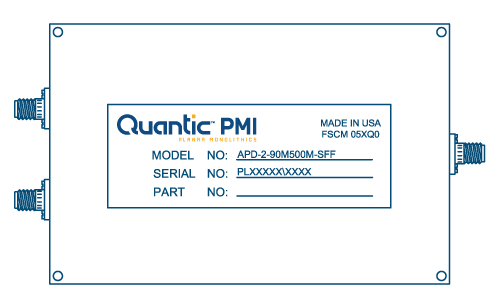

APD-2-90M500M-SFF
Product Feature

Quantic PMI Model APD-2-90M500M-SFF is a 2 Way power divider operating in the frequency range of 0.09 to 0.5 GHz that has an isolation of 21 dB minimum and an insertion loss of 0.6 dB maximum (Above 9.03 dB Split). Housing size is 4.84" x 3.15" x 0.79" with SMA female connectors.

Product Specifications

General Parameters:
Status: Preliminary
Type: 2 Way
Frequency Range (GHz): 0.09 to 0.5
Frequency Min (GHz): 0.09
Frequency Max (GHz): 0.5
Isolation (dB): 21 dB Min
Insertion Loss (dB): 0.6 dB Max
VSWR (In/Out): 1.3:1 / 1.2:1
Amplitude Balance: ±0.2 dB Max
Phase Balance: ±2° Max
Power Handling: 50 W Max (Forward)
1 W Max (Reverse)
Impedance: 50 Ohm
Connectors: SMA Female
Size: 4.84" x 3.15" x 0.79"
Finish: Painted Blue
Export Classification (ECCN): EAR99
Environmental Ratings:
Temperature (Operating): -65 °C to +100 °C
Temperature (Non-Operating): -55 °C to +80 °C
Humidity: MIL-STD-202F, METHOD 103B COND. B
Shock: MIL-STD-202F, METHOD 213B COND. B
Vibration: MIL-STD-202F, METHOD 204D COND. B
Altitude: MIL-STD-202F, METHOD 105C COND. B
Temperature Cycle: MIL-STD-202F, METHOD 107
