| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| Type: | 3 Way |
|---|
| Frequency Range (GHz): | 0.5 to 2 |
|---|
| Frequency Min (GHz): | 0.5 |
|---|
| Frequency Max (GHz): | 2 |
|---|
| Isolation (dB): | 16 dB Min |
|---|
| Insertion Loss (dB): | 0.75 dB Max |
|---|
| VSWR (In/Out): | 1.5:1 / 1.5:1 |
|---|
| Amplitude Balance: | 0.4 dB |
|---|
| Phase Balance: | 8° |
|---|
| Average Power Into Load VSWR: | 25 W (1.2:1),
7.5 W (2.1:1) |
|---|
| Connectors: | SMA Female |
|---|

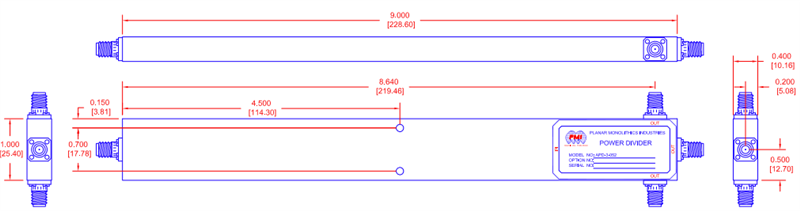

| Size: | 9.00" x 1.00" x 0.40" |
|---|
| Weight: | 4 oz |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Temperature (Operating): | -55 ºC to +85 ºC |
|---|
| Temperature (Non-Operating): | -65 ºC to +100 ºC |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
|---|
