APD-3-18G40G-10W-292FF Preliminary
3-Way Power Divider

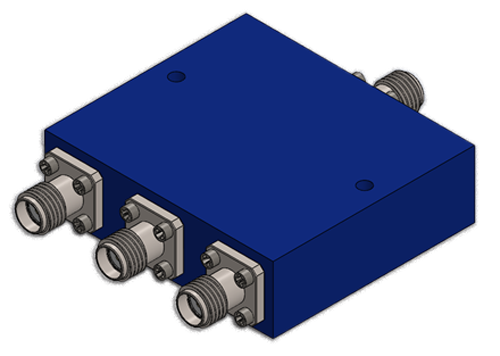

PMI Model APD-3-18G40G-10W-292FF is an 18 to 40 GHz, 3-way power divider featuring 10 W power handling, 2 dB insertion loss, and 17 dB isolation. Housing size is 1.5" x 1.4" x 0.5" with 2.92mm female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Type: | 3-Way |
| Frequency Range (GHz): | 18 to 40 |
| Frequency Min (GHz): | 18 |
| Frequency Max (GHz): | 40 |
| Isolation (dB): | 17 dB Min |
| Insertion Loss (dB): | 2 dB Max |
| VSWR (In/Out): | 2.0:1 Max |
| Amplitude Balance: | ±0.9 dB Max |
| Phase Balance: | ±10° Max |
| Input Power: | 10 W Max (As splitter into 1.2:1 Max load VSWR) |
| Connectors: | 2.92mm Female |

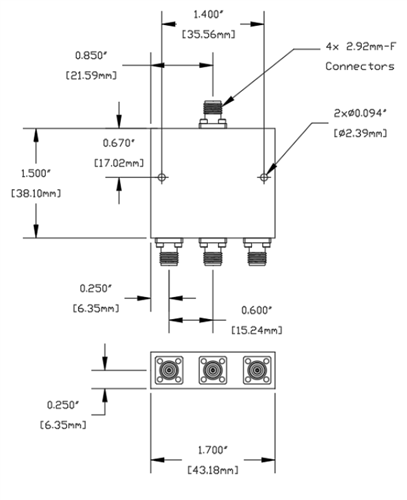

| Size: | 1.5" x 1.4" x 0.5" |
| Finish: | Painted Blue |
| Weight: | 80 g Typ |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -55 to +100 °C |
| Temperature (Storage): | -55 °C to +100 °C |
