APD-3-1D7G2D3G-CD-1 Preliminary

3 Way Power Divider

APD-3-1D7G2D3G-CD-1
Product Feature

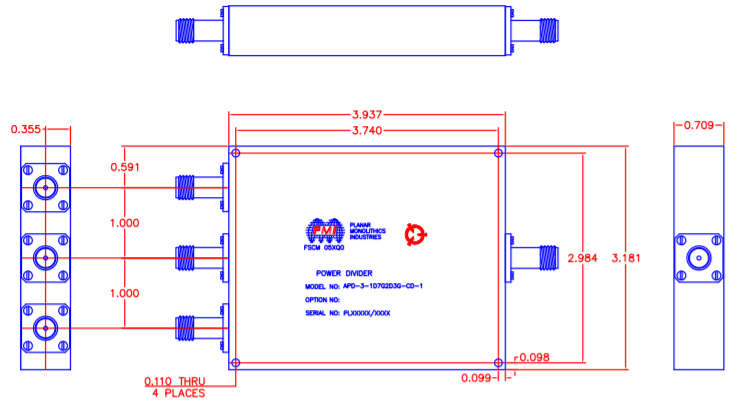

Quantic PMI Model APD-3-1D7G2D3G-CD-1 is a 3 way power divider featuring high isolation, low insertion loss and low VSWR that is designed for narrowband use and high reliability and is rated for 60 W. Housing measures 3.327" x 3.181" x 0.709" and is outfitted with TNC female connectors.

Product Specifications

General Parameters:
Status: Preliminary
Type: 3 Way
Frequency Range (GHz): 1.7 to 2.3
Frequency Min (GHz): 1.7
Frequency Max (GHz): 2.3
Isolation (dB): 18 dB Typ
Insertion Loss (dB): 0.9 dB Typ
VSWR (In/Out): 1.5:1 Typ
Amplitude Balance: ±0.5 dB Typ
Phase Balance: ±5° Typ
Average Power Into Load VSWR: 60 W
Connectors: TNC Female
Size: 3.327" x 3.181" x 0.709"
Finish: Painted Blue
Export Classification (ECCN): EAR99
Environmental Ratings:
Temperature (Operating): -55 ºC to +85 ºC
Temperature (Non-Operating): -65 °C to +125 °C
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
