APD-3-694M3800M-100W-NFF Preliminary
3-Way Power Divider

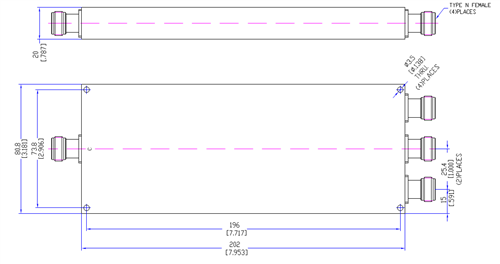

PMI Model APD-3-694M3800M-100W-NFF is a 0.694 to 3.8 GHz 3-way power divider featuring 100 W forward power handling, and a 2.2 dB insertion loss. Package size is 7.953" x 3.181" x 0.787" with N type connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Type: | 3 Way |
| Frequency Range (GHz): | 0.694 to 3.8 |
| Frequency Min (GHz): | 0.694 |
| Frequency Max (GHz): | 3.8 |
| Isolation (dB): | 16 dB Min |
| Insertion Loss (dB): | 2.2 dB Max |
| VSWR (In/Out): | 1.60:1 Max |
| Amplitude Balance: | ±0.8 dB Max |
| Phase Balance: | ±8° Max |
| Power Handling: | 100 W Forward 2 W Reverse |
| Connectors: | N Female |
| Size: | 7.953" x 3.181" x 0.787" |
| Finish: | Painted Blue |
| Environmental Ratings: | |
| Temperature (Operating): | -25 ℃ to +65 ℃ |
| Temperature (Non-Operating): | -65 ℃ to +125 ℃ |
| Humidity: | Up to 95%, Non-Condensing |
| Shock: | MIL-STD-202, Method 213B Cond. B |
| Vibration: | MIL-STD-202, Method 204D Cond. B |
| Altitude: | MIL-STD-202, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202, Method 107D Cond. A |
