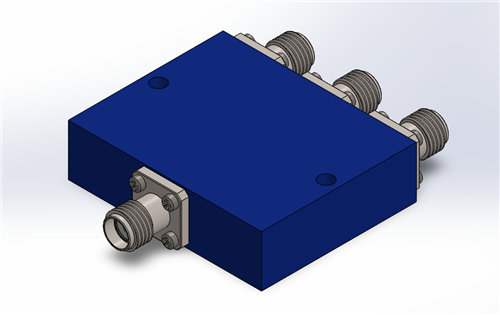

APD-3-6G18G-SFF Preliminary
3-Way Power Divider
Quantic PMI Model APD-3-6G18G-SFF is a 3-way power divider that operates over the 6 to 18 GHz frequency range and has 1 dB insertion loss, 16 dB isolation, and SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Type: | 3 Way |
| Frequency Range (GHz): | 6 to 18 |
| Frequency Min (GHz): | 6 |
| Frequency Max (GHz): | 18 |
| Isolation (dB): | 16 dB Min |
| Insertion Loss (dB): | 1 dB Max (Above 4.77 dB Split) |
| VSWR (In/Out): | 1.5:1 Max |
| Amplitude Balance: | ±0.6 dB Max |
| Phase Balance: | ±6 Max |
| Power Handling: | 30 W Max (Forward) 1 W Max (Reverse) |
| Impedance: | 50 Ohm |
| Connectors: | SMA Female |
| Connector Body: | Passivated Stainless Steel |
| Finish: | Painted Blue |
| Weight: | 40 g |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -55 °C to +85 °C |
| Operating Humidity: | Up to 95% (Non-Condensing) |
