APD-32-2R5G2R9G-SMF Preliminary

32 Way Power Divider

APD-32-2R5G2R9G-SMF
Product Feature

Quantic PMI Model APD-32-2R5G2R9G-SMF is a 2.5 to 2.9 GHz, 32 Way Power Divider that demonstrates low 2 dB maximum insertion loss as well as 20 dB minimum of isolation. Housing measures 12.799" x 5.0" x 0.787" and is outfitted with SMA male / female connectors.

Product Specifications

General Parameters:
Status: Preliminary
Type: 32 Way
Frequency Range (GHz): 2.5 to 2.9
Frequency Min (GHz): 2.5
Frequency Max (GHz): 2.9
Isolation (dB): 20 dB Min
Insertion Loss (dB): 2 dB Max
VSWR (In/Out): 1.6:1 Max / 1.4:1 Max
Amplitude Balance: ±0.8 dB Max
Phase Balance: ±7° Max
Power Handling: 30 W Max (Forward)
1 W Max (Reverse)
Impedance: 50 Ohm
Connectors: SMA Male / Female

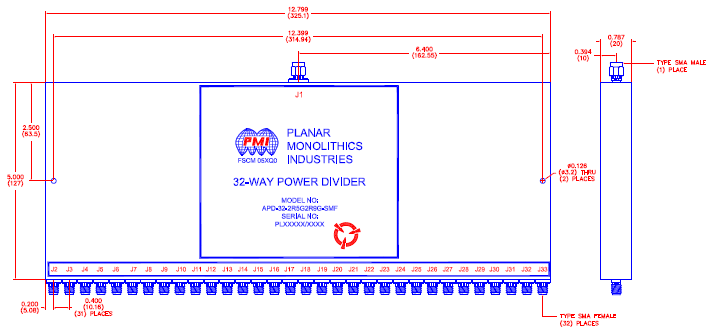

Size: 12.799" x 5.0" x 0.787"
Finish: Painted Blue
Export Classification (ECCN): EAR99
Environmental Ratings:
Temperature (Operating): -40 ºC to +85 ºC
Operating Humidity: Up to 95% (Non-Condensing)
