APD-32-540M-SMF Preliminary
32 Way Power Divider
Quantic PMI Model APD-32-540M-SMF is a 0.54 GHz, 32 Way Power Divider that demonstrates low 2 dB maximum insertion loss as well as 20 dB minimum of isolation. Housing measures 12.799" x 5.0" x 0.787" and is outfitted with SMA male / female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Type: | 32 Way |
| Frequency Range (GHz): | 0.54 |
| Frequency Min (GHz): | 0.54 |
| Frequency Max (GHz): | 0.54 |
| Isolation (dB): | 20 dB Min |
| Insertion Loss (dB): | 2 dB Max |
| VSWR (In/Out): | 1.6:1 Max / 1.4:1 Max |
| Amplitude Balance: | ±0.8 dB Max |
| Phase Balance: | ±7° Max |
| Power Handling: | 30 W Max (Forward) 1 W Max (Reverse) |
| Impedance: | 50 Ohm |
| Connectors: | SMA Male / Female |

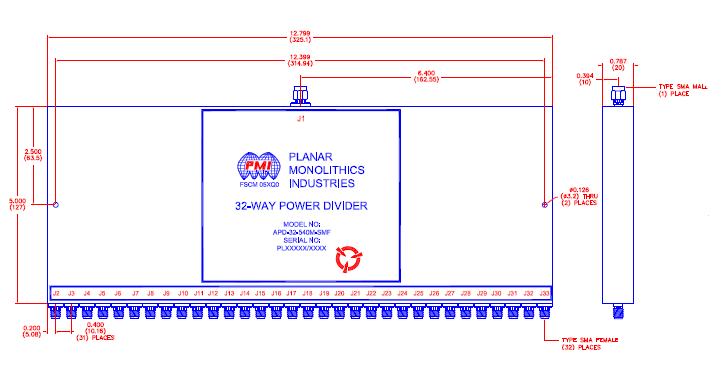

| Size: | 12.799" x 5.0" x 0.787" |
| Finish: | Painted Blue |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -40 ºC to +85 ºC |
| Operating Humidity: | Up To 90%, Non-Condensing |
