APD-32-950M1450M-SFF-30W Preliminary

32 Way Power Divider

APD-32-950M1450M-SFF-30W
Product Feature

Quantic PMI Model APD-32-950M1450M-SFF-30W is a 0.95 to 1.45 GHz, 32 Way Power Divider featuring high isolation, low insertion loss, and low VSWR that is designed for broadband use and high reliability.  Housing measures 17.008" x 5.433" x 0.591" and is outfitted with SMA female connectors.

Product Specifications

General Parameters:
Status: Preliminary
Type: 32 Way
Frequency Range (GHz): 0.95 to 1.45
Frequency Min (GHz): 0.95
Frequency Max (GHz): 1.45
Isolation (dB): 20 dB Min
Insertion Loss (dB): 2.6 dB Max
VSWR (In/Out): 1.60:1
Amplitude Balance: ±1 dB
Phase Balance: ±15°
Power Handling: 30 W Max (Forward)
1 W Max (Reverse)
Impedance: 50 Ohm
Connectors: SMA Female

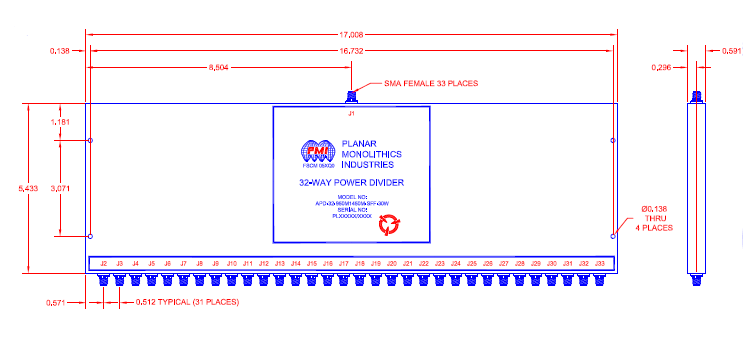

Size: 17.008" x 5.433" x 0.591"
Finish: Painted Blue
Export Classification (ECCN): EAR99
Environmental Ratings:
Temperature (Operating): -40 ºC to +70 ºC
Temperature (Non-Operating): -65 ºC to +125 ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
