APD-4-0D3G1G-NFF Preliminary
4 Way Power Divider
Quantic PMI Model APD-4-0D3G1G-NFF is a 4 Way power divider operating over the 0.3 to 1 GHz frequency range. This power divider demonstrates a low maximum insertion loss of 1 dB and a minimum isolation of 18 dB. Package size is 4.37" x 8.31" x 0.79" with N-Type female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Type: | 4 Way |
| Frequency Range (GHz): | 0.3 to 1 |
| Frequency Min (GHz): | 0.3 |
| Frequency Max (GHz): | 1 |
| Isolation (dB): | 18 dB Min |
| Insertion Loss (dB): | 1 dB Max (Above 6.02 dB Split) |
| VSWR (In/Out): | 1.4:1 / 1.2:1 Max |
| Amplitude Balance: | ±0.3 dB Max |
| Phase Balance: | ± 3° Max |
| Power Handling: | 50 W Max (Forward) 25 W Max each port (Reverse) |
| Impedance: | 50 Ohm |
| Connectors: | Type-N Female |

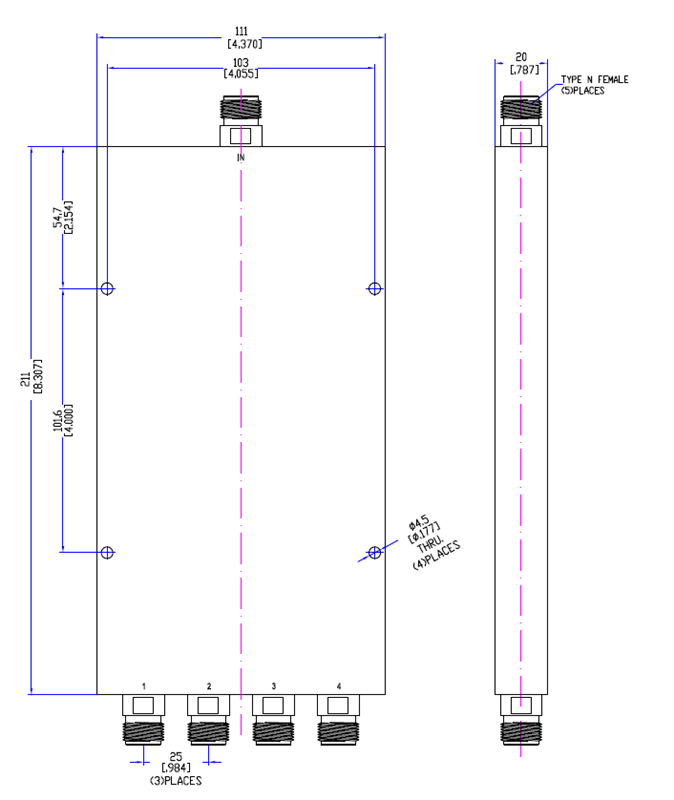

| Size: | 4.37" x 8.31" x 0.79" |
| Finish: | Painted Blue |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -55 °C to +85 °C |
| Operating Humidity: | Up to 95% (Non-Condensing) |
