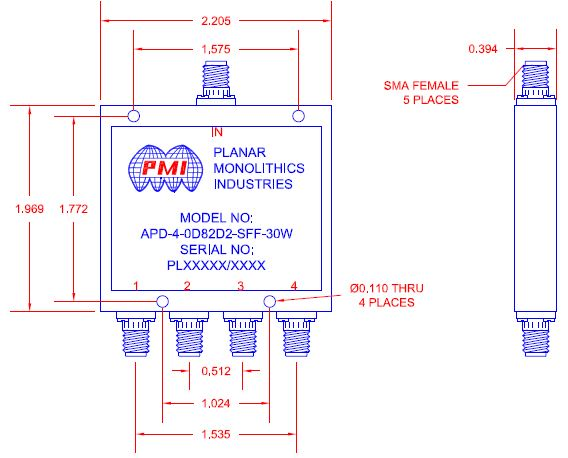

APD-4-0D82D2-SFF-30W

PMI Model No. APD-4-0D82D2-SFF-30W is a 4-Way Power Divider that operates over the frequency range of 0.8 to 2.2 GHz. It has a maximum insertion loss of 0.7 dB (above 6.02 dB split) and a minimum isolation of 22 dB. This model is outfitted with SMA female connectors.

Product Specifications

General Parameters:
Status: Preliminary
Type: 4-Way
Frequency Min: 0.8 GHz
Frequency Max: 2.2 GHz
Isolation: 22 dB min.
Insertion Loss: 0.7 dB max. (Above 6.02 dB Split)
VSWR (In/Out): 1.25:1 max./1.20:1 max.
Amplitude Balance: ±0.2 dB max.
Phase Balance: ±2° max.
Power Handling: Forward: 30 W max.
Reversed: 1 W max.
Impedance: 50 Ohms
Connectors: SMA (F)
Finish: Painted Blue
Environmental Ratings:
Operating Temperature: -55°C to +85°C
Non-Operating Temperature: -65°C to +125°C
Operating Humidity: Up to 95%, Non-Condensing
Shock: MIL-STD-202, Method 213B Cond. B
Vibration: MIL-STD-202, Method 204D Cond. B
Altitude: MIL-STD-202, Method 105C Cond. B
Temperature Cycle: MIL-STD-202, Method 107D Cond. A
