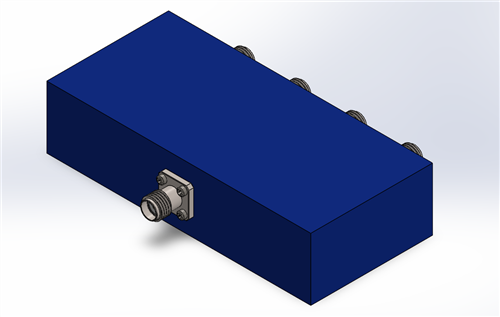

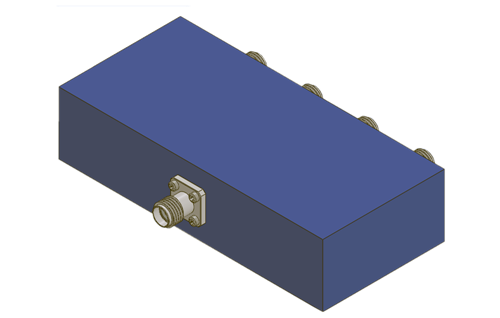

APD-4-10M2000M-1W-SFF Preliminary
4-Way Power Divider
PMI Model APD-4-10M2000M-1W-SFF is a 4 way power divider that operates over the 0.01 to 2 GHz that features a typical isolation of 14 dB @ 2 GHz; insertion loss of 2.3 dB; amplitude balance of 0.3 dB; and a phase balance of 6°.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Type: | 4 Way |
| Frequency Range (GHz): | 0.01 to 2 |
| Frequency Min (GHz): | .01 |
| Frequency Max (GHz): | 2 |
| Isolation (dB): | 30 dB Typ @ 0.01 to 0.05 GHz, 20 dB Typ @ 0.05 to 1 GHz, 14 dB Typ @ 1 to 2 GHz |
| Insertion Loss (dB): | 1.3 dB Typ @ 0.01 to 0.05 GHz, 1.6 dB Typ @ 0.05 to 1 GHz, 2.3 dB Typ @ 1 to 2 GHz |
| VSWR (In/Out): | 1.4:1 Typ / 1.2:1 Typ |
| Amplitude Balance: | 0.01 dB Typ @ 0.01 to 0.05 GHz, 0.1 dB Typ @ 0.05 to 1 GHz, 0.3 dB Typ @ 1 to 2 GHz |
| Phase Balance: | 0.5° Typ @ 0.01 to 0.05 GHz, 3° Typ @ 0.05 to 1 GHz, 6° Typ @ 1 to 2 GHz |
| Power Handling: | 1 W CW Max |
| Connectors: | SMA Female |
| Size: | 3.25" x 1.5" x 0.77" |
| Finish: | Painted Blue |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -40 ˚C to +85 ˚C |
