APD-4-15G16G-SFF Preliminary

4 Way Power Divider

APD-4-15G16G-SFF

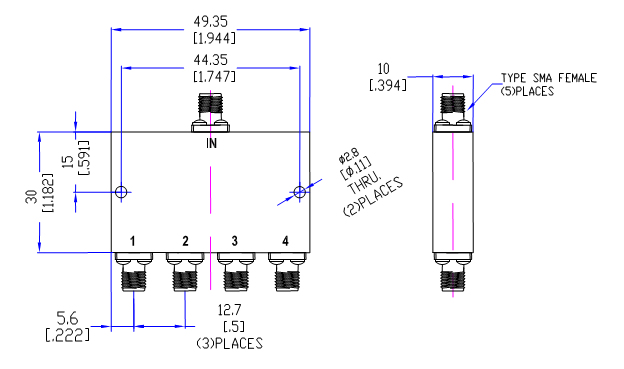

Quantic PMI Model APD-4-15G16G-SFF is a 4 Way power divider operating over the 15 to 16 GHz frequency range. This power divider demonstrates a low maximum insertion loss of 1 dB and a minimum isolation of 20 dB. Package size is 1.944" x 1.182" x 0.394" with SMA female connectors.

Product Specifications

General Parameters:
Status: Preliminary
Type: 4 Way
Frequency Range (GHz): 16 to 16
Frequency Min (GHz): 15
Frequency Max (GHz): 16
Isolation (dB): 20 dB Min
Insertion Loss (dB): 1 dB Max
(Above 6.02 dB Split)
VSWR (In/Out): 1.5:1 / 1.4:1 Max
Amplitude Balance: ±0.5 dB Max
Phase Balance: ± 5° Max
Power Handling: 30 W Max (Forward)
1 W Max (Reverse)
Impedance: 50 Ohm
Connectors: SMA Female
Finish: Painted Blue
Weight: 50 g
Export Classification (ECCN): EAR99
Environmental Ratings:
Temperature (Operating): -55 °C to +85 °C
Temperature (Non-Operating): -65 °C to +125 °C
Operating Humidity: Up to 95% (Non-Condensing)
Shock: MIL-STD-202, Method 213B Cond. B
Vibration: MIL-STD-202, Method 204D Cond. B
Altitude: MIL-STD-202, Method 105C Cond. B
Temperature Cycle: MIL-STD-202, Method 107D Cond. A
