APD-4-18G40G-20W-292FF Preliminary
4 Way Power Divider

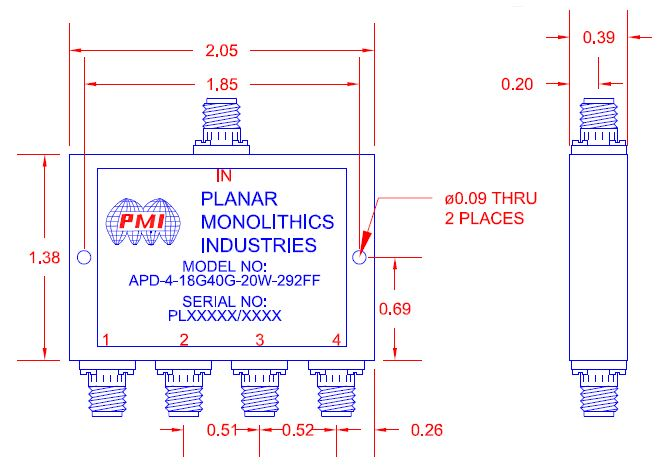

Quantic PMI Model APD-4-18G40G-20W-292FF is a 4 Way Power Divider that operates over the frequency range of 18 to 40 GHz with a maximum insertion loss of 2.4 dB and a typical isolation of 18 dB. Housing size is 2.05" x 1.38" x 0.39" and is outfitted with SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Type: | 4 Way |
| Frequency Range (GHz): | 18 to 40 |
| Frequency Min (GHz): | 18 |
| Frequency Max (GHz): | 40 |
| Isolation (dB): | 15 dB Min, 18 dB Typ |
| Insertion Loss (dB): | 2.4 dB Max |
| Amplitude Balance: | ±0.4 dB |
| Phase Balance: | ±4° Typ, ±7° Max |
| Impedance: | 50 Ohm |
| Forward Power: | 20 W Max |
| Reverse Power: | 0.5 W Max |
| VSWR Input: | 1.8:1 Typ, 2.01: Max |
| VSWR Output: | 1.6:1 Max |
| Connectors: | 2.92mm Female |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -55 ºC to +85 ºC |
| Temperature (Non-Operating): | -65 ºC to +125 ºC |
| Humidity: | MIL-STD-202, Method 103B Cond. B |
| Shock: | MIL-STD-202, Method 213B Cond. B |
| Vibration: | MIL-STD-202, Method 204D Cond. B |
| Altitude: | MIL-STD-202, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202, Method 107D Cond. A |
