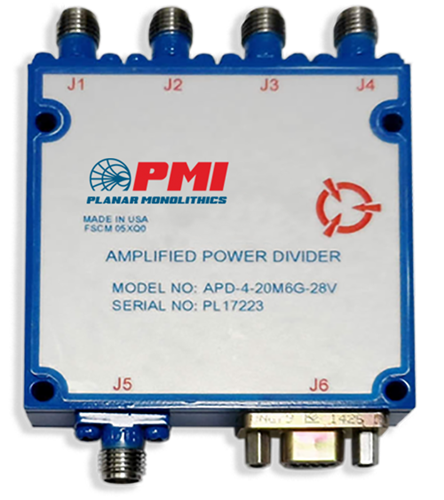

APD-4-20M6G-28V

PMI Model No. APD-4-20M6G-28V is a 4-Way Amplified Power Divider Module for use over the frequency range of 20 MHz to 6.0 GHz with 3.5 dB of gain, and a typical output P1dB of 9 dBm. This model is designed to have a low noise figure over a broad frequency range.

Product Specifications

General Parameters:
Status: Active
Type: 4-Way
Frequency Min: 0.02 GHz
Frequency Max: 6 GHz
Frequency Range: 0.02 to 6.0 GHz
Gain: 3.5 dB, ±2 dB Max - Measured:3.5 dB ±1.07 dB J1 Max, 3.5 dB ±1.05 dB J2 Max, 3.5 dB ±0.94 dB J3 Max, 3.5 dB ±0.91 dB J4 Max
Noise Figure: 5.5 dB (70 to 3000 MHz) Max, 6 dB (20 to 6000 MHz) Typ - Measured:4.4 dB, 4.7 dB J1 Max, 4.5 dB, 4.8 dB J2 Max, 4.7 dB, 4.6 dB J3 Max, 4.6 dB, 4.8 dB J4 Max
VSWR (In/Out): 2.5:1 max - Measured:1.70:1 dB J1 Max, 1.69:1 dB J2 Max, 1.70:1 dB J3 Max, 1.66:1 dB J4 Max, 2.27:1 dB J5 Max
Output Power P1dB: 10 dBm (20 to 3000 MHz) Typ, 9 dBm (3.0 to 6.0 GHz) Typ - Measured 11.50 dB - 11.42 dB J1 Max, 11.46 dB - 11.38 dB J2 Max, 11.44 dB - 11.33 dB J3 Max, 11.42 dB - 11.31 dB J4 Max
Input Power: 33 dBm Max (Survival) - Measured 33 dBm Max
Power Supply: +28 V @ 200 mA Max - Measured 75 mA
Finish: Painted Blue
Weight: 100 g Max - Measured 75 g
Size: 2.00" x 2.00" x 0.40"
Environmental Ratings:
Operating Temperature: -40 ºC to +85 ºC
Non-Operating Temperature: -54 ºC to +100 ºC
Humidity: MIL-STD-202G, Method 103B Cond. B
Shock: MIL-STD-202G, Method 213B Cond. B
Vibration: MIL-STD-202G, Method 204D Cond. B
Altitude: MIL-STD-202G, Method 105C Cond. B
Temperature Cycle: MIL-STD-202G, Method 107D Cond. A
