APD-4-26D5G40G-20W-292FF Active
4 Way Power Divider

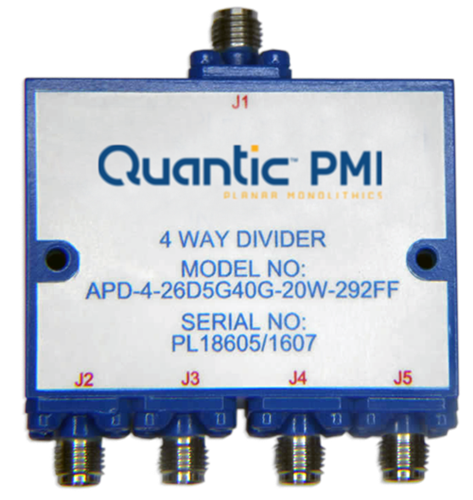

Quantic PMI Model APD-4-26D5G40G-20W-292FF is a 4 Way Divider operating between 26.5 to 40 GHz that offers 18 dB minimum isolation while maintaining a insertion loss of 2.4 dB, a maximum phase balance of 5°, and a maximum amplitude balance of 0.4 dB. Housing measures 2.06" x 1.5" x 0.5" and is outfitted with 2.92mm female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Type: | 4 Way |
| Frequency Range (GHz): | 26.5 to 40 |
| Frequency Min (GHz): | 26.5 |
| Frequency Max (GHz): | 40 |
| Isolation (dB): | 18 dB Min |
| Isolation (dB) - Measured: | 18 dB Min - Measured 31.4 dB |
| Insertion Loss (dB): | 2.4 dB Max |
| Insertion Loss (dB) - Measured: | 2.4 dB Max- Measured 1.52 dB |
| VSWR (In/Out): | 1.6:1 Max- |
| Amplitude Balance: | ±0.4 dB |
| Phase Balance: | ±5° |
| Power Handling: | 20 W (Input), 0.5 W (Output) |
| Impedance: | 50 Ohm |
| Connectors: | 2.92mm Female |
| Size: | 2.06" x 1.50" x 0.50" |
| Finish: | Painted Blue |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -55 ºC to +105 ºC |
