APD-4-26D5G40G-20W-292FF-OPT37G39G Active

4 Way Power Divider

APD-4-26D5G40G-20W-292FF-OPT37G39G
Product Feature
Additional Documents

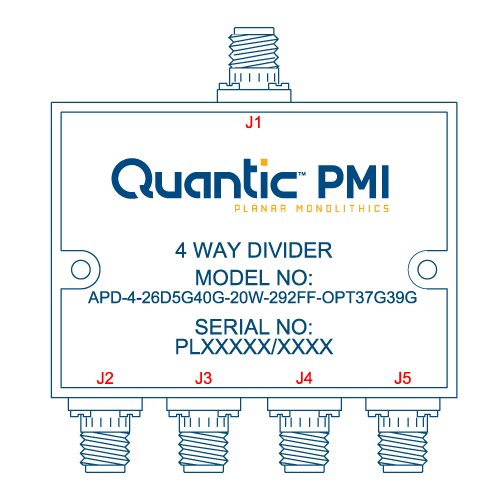

Quantic PMI Model APD-4-26D5G40G-20W-292FF-OPT37G39G is a 4 Way Divider optimized to operate over the 37 to 39 GHz frequency range that offers a minimum of 20 dB isolation and a maximum of 2 dB insertion loss while maintaining a maximum VSWR of 1.5:1. Housing measures 2.06" x 1.5" x 0.5" and is outfitted with 2.92mm female connectors.

Product Specifications

General Parameters:
Status: Active
Type: 4 Way
Frequency Range (GHz): 37 to 39
Frequency Min (GHz): 37
Frequency Max (GHz): 39
Isolation (dB): 20 dB Min
Insertion Loss (dB): 2 dB Max
VSWR (In/Out): 1.5:1 Max
Amplitude Balance: ±0.3 dB Max
Phase Balance: ±4° Maximum
Power Handling: 20 W CW Max, 3 kW Peak Max
Impedance: 50 Ohm
Connectors: 2.92mm Female
Size: 2.06" x 1.50" x 0.50"
Finish: Painted Blue
Export Classification (ECCN): EAR99
Environmental Ratings:
Temperature (Operating): -55 ºC to +105 ºC
